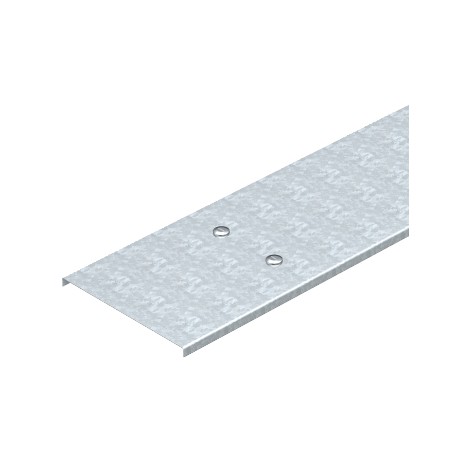

OBO BETTERMANN WDRL 1116 60 FS WDRL 1116 60 FS 6227465 OBO BETTERMANN Cover with sash lock wide span system 110 and 160, 600x3000, Strip-ga.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WDRL 1116 60 FS 6227465 OBO BETTERMANN Cover with sash lock wide span system 110 and 160, 600x3000, Strip-ga..

WDRL 1116 60 FS

6227465

OBO BETTERMANN

3 m.

Cover with sash lock wide span system 110 and 160, 600x3000, Strip-galvanised, DIN EN 10147, Steel, St Cover incl. turn buckle FS. Cover with turn buckles for wide span cable trays and wide span cable ladders with side heights of 110 and 160 mm.Take appropriate constructive protection measures if there are high wind speeds.

Cables > Cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for large-scale electrical infrastructure, the WDRL 1116 60 FS by Obo Bettermann is a cover with sash lock wide span system 110 and 160 deployed to protect heavy-duty routing networks. Wide-span system covers provide robust physical shielding for high-capacity cable support structures in demanding facilities. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 16,9523 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 600x3000
  • Dimension B: 600 mm
  • Dimension H: 15 mm
  • Dimension L: 3000 mm
  • Fastening type: Sash lock
  • Height: 110 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Number of turn buckles: 6 St.
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate16,9523 kg CO2e / 1 Meter
Colourzinc
Dimension600x3000
Dimension B600 mm
Dimension H15 mm
Dimension L3000 mm
Fastening typeSash lock
Height110 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Number of turn buckles6 St.
Plate thickness1,5 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanized
Width600 mm
