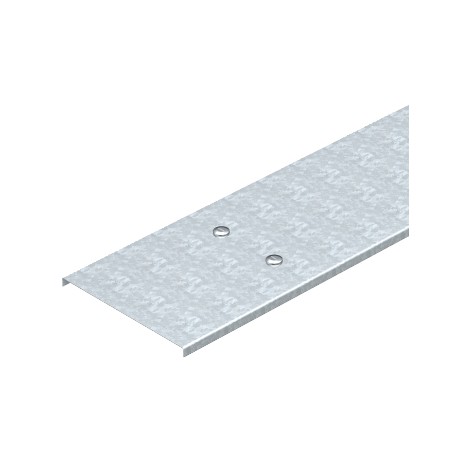

OBO BETTERMANN WDRL 1116 50 FS WDRL 1116 50 FS 6227457 OBO BETTERMANN Cover with sash lock wide span system 110 and 160, 500x3000, Strip-ga.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WDRL 1116 50 FS 6227457 OBO BETTERMANN Cover with sash lock wide span system 110 and 160, 500x3000, Strip-ga..

WDRL 1116 50 FS

6227457

OBO BETTERMANN

3 m.

Cover with sash lock wide span system 110 and 160, 500x3000, Strip-galvanised, DIN EN 10147, Steel, St Cover incl. turn buckle FS. Cover with turn buckles for wide span cable trays and wide span cable ladders with side heights of 110 and 160 mm.Take appropriate constructive protection measures if there are high wind speeds.

Cables > Cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann WDRL 1116 50 FS is a cover with sash lock for wide span systems 110 and 160. These structural covers safeguard large bundles of electrical cables running across extended architectural gaps in manufacturing facilities.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 14,2714 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 500x3000
  • Dimension B: 500 mm
  • Dimension H: 15 mm
  • Dimension L: 3000 mm
  • Fastening type: Sash lock
  • Height: 110 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Number of turn buckles: 6 St.
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate14,2714 kg CO2e / 1 Meter
Colourzinc
Dimension500x3000
Dimension B500 mm
Dimension H15 mm
Dimension L3000 mm
Fastening typeSash lock
Height110 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Number of turn buckles6 St.
Plate thickness1,5 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanized
Width500 mm
