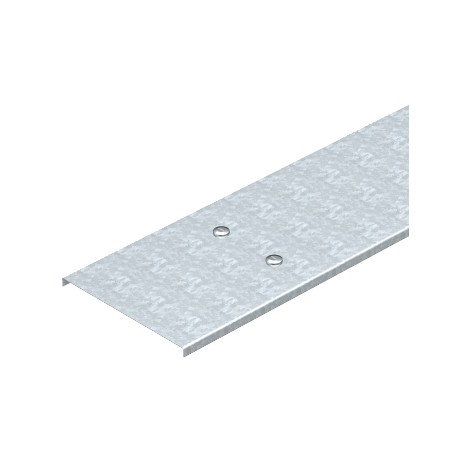

WDRL 1116 50 DD 6227612 OBO BETTERMANN Cover with sash lock wide span system 110 and 160, 500x3000, Zinc-alu..
WDRL 1116 50 DD
6227612
OBO BETTERMANN
3 m.
Cover with sash lock wide span system 110 and 160, 500x3000, Zinc-aluminium coated, double-dip, Steel, St
WDRL screw cover 1116 50 DD, wide span system 110 and 160 500x3000 Steel, St, Galvanized zinc/aluminum strip, Double Dip, DIN EN 10346
Lid with rotating screw DD. Lid with rotating screw for Cable tray with wide spans and ladder tray with wide spans with a side height of 110 and 160 mm. In case of high wind loads, the installer must provide safety measures.
Cables > Cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Transverse bead from 500 mm width.
| Feature Name | Feature Value |
|---|---|
| Cover width (EF005146) | 500 mm |
| Material thickness (EF000386) | 1.5 mm |
| Suitable for cable tray (EF005166) | Yes |
| Suitable for wire mesh tray (EF005163) | No |
| Suitable for cable ladder (EF005165) | Yes |
| Length (EF001438) | 3000 mm |
| Type of fastening (EF002442) | Turnbuckle |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Continuously galvanised zinc-aluminium |
