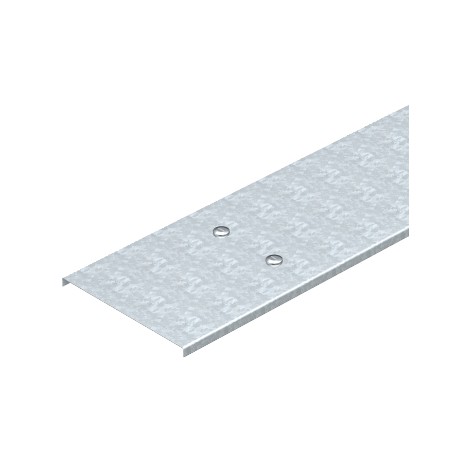

WDRL 1116 40 FS 6227449 OBO BETTERMANN Cover with sash lock wide span system 110 and 160, 400x3000, Strip-ga..
WDRL 1116 40 FS
6227449
OBO BETTERMANN
3 m.
Cover with sash lock wide span system 110 and 160, 400x3000, Strip-galvanised, DIN EN 10147, Steel, St
Cover incl. turn buckle FS. Cover with turn buckles for wide span cable trays and wide span cable ladders with side heights of 110 and 160 mm.Take appropriate constructive protection measures if there are high wind speeds.
Cables > Cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann WDRL 1116 40 FS is a cover with sash lock for wide span systems 110 and 160. Wide span protective covers shield heavy-duty cabling installations spanning long distances between industrial support structures.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 11,6256 kg CO2e / 1 Meter
- Colour: zinc
- Dimension: 400x3000
- Dimension B: 400 mm
- Dimension H: 15 mm
- Dimension L: 3000 mm
- Fastening type: Sash lock
- Height: 110 mm
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Steel
- Number of turn buckles: 6 St.
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Suitable for cable ladder: yes
- Suitable for cable tray: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 11,6256 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 400x3000 |
| Dimension B | 400 mm |
| Dimension H | 15 mm |
| Dimension L | 3000 mm |
| Fastening type | Sash lock |
| Height | 110 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
|---|---|
| Number of turn buckles | 6 St. |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanized |
| Width | 400 mm |
