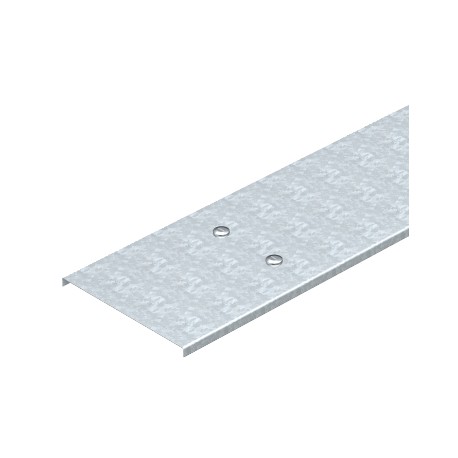

WDRL 1116 40 DD 6227608 OBO BETTERMANN Cover with sash lock wide span system 110 and 160, 400x3000, Zinc-alu..
WDRL 1116 40 DD
6227608
OBO BETTERMANN
3 m.
Cables > Cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Covering wide-span cable support networks, the WDRL 1116 40 DD by Obo Bettermann is a cover with sash lock wide span system 110 and 160 designed to protect heavy-duty electrical runs. These covers shield expansive cabling routes from environmental debris and physical impacts. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 11,6288 kg CO2e / 1 Meter
- Colour: zinc
- Dimension: 400x3000
- Dimension B: 400 mm
- Dimension H: 15 mm
- Dimension L: 3000 mm
- Fastening type: Sash lock
- Height: 110 mm
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Steel
- Number of turn buckles: 6 St.
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Suitable for cable ladder: yes
- Suitable for cable tray: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 11,6288 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 400x3000 |
| Dimension B | 400 mm |
| Dimension H | 15 mm |
| Dimension L | 3000 mm |
| Fastening type | Sash lock |
| Height | 110 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
|---|---|
| Number of turn buckles | 6 St. |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Width | 400 mm |
