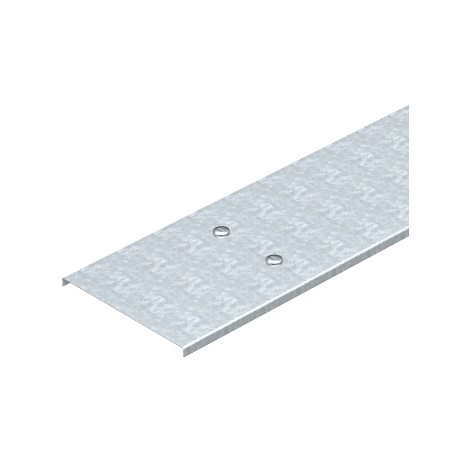

WDRL 1116 30 DD 6227604 OBO BETTERMANN Cover with sash lock wide span system 110 and 160, 300x3000, Zinc-alu..
WDRL 1116 30 DD
6227604
OBO BETTERMANN
3 m.
Cover with sash lock wide span system 110 and 160, 300x3000, Zinc-aluminium coated, double-dip, Steel, St
WDRL screw cover 1116 30 DD, wide span system 110 and 160 300x3000 Steel, St, Galvanized in zinc/aluminum strip, Double Dip, DIN EN 10346
DD cover with turn buckle. Cover with turn buckles for wide span cable trays and wide span cable ladders with side heights of 110 and 160 mm.Take appropriate constructive protection measures if there are high wind speeds.
Cables > Cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 6,0875 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 300x3000 |
| Dimension B | 300 mm |
| Dimension H | 15 mm |
| Dimension L | 3000 mm |
| Fastening type | Sash lock |
| Height | 110 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
|---|---|
| Number of turn buckles | 6 St. |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Width | 300 mm |
| Feature Name | Feature Value |
|---|---|
| Cover width (EF005146) | 300 mm |
| Material thickness (EF000386) | 1 mm |
| Suitable for cable tray (EF005166) | Yes |
| Suitable for wire mesh tray (EF005163) | No |
| Suitable for cable ladder (EF005165) | Yes |
| Length (EF001438) | 3000 mm |
| Type of fastening (EF002442) | Turnbuckle |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Continuously galvanised zinc-aluminium |
