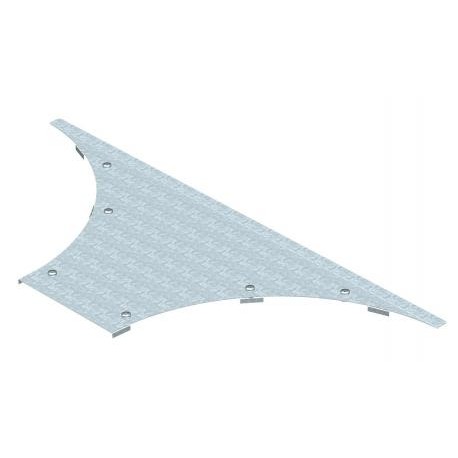

OBO BETTERMANN WAAD 500 DD WAAD 500 DD 6231934 OBO BETTERMANN Cover, mounting/branch piece wide span system 110 and 160, B500mm, Zinc-a.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WAAD 500 DD 6231934 OBO BETTERMANN Cover, mounting/branch piece wide span system 110 and 160, B500mm, Zinc-a..

WAAD 500 DD

6231934

OBO BETTERMANN

1 Pcs.

Cover, mounting/branch piece wide span system 110 and 160, B500mm, Zinc-aluminium coated, double-dip, Steel, St Cover for DD mounting/branch piece. Cover for wide span add-on tee with pre-mounted turn buckles.

Cables > Add-on tee cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Shielding critical branching points within large cable infrastructures, the Obo Bettermann WAAD 500 DD cover, mounting/branch piece wide span system 110 and 160 provides reliable overhead containment protection. Durable covers safeguard high-capacity routing intersections from external environmental hazards.

Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 23,7752 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B500mm
  • Dimension B: 500 mm
  • Dimension H: 15 mm
  • Dimension R: 500 mm
  • Fastening type: Sash lock
  • Height: 110 mm
  • Material: Steel
  • Material thickness: 1,5 mm
  • Number of turn buckles: 6 St.
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes
  • Surface: Strip galvanised zinc/aluminium, Double Dip

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate23,7752 kg CO2e / 1 Piece
Colourzinc
DimensionB500mm
Dimension B500 mm
Dimension H15 mm
Dimension R500 mm
Fastening typeSash lock
Height110 mm
MaterialSteel
Material thickness1,5 mm
Number of turn buckles6 St.
Plate thickness1,5 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
SurfaceStrip galvanised zinc/aluminium, Double Dip
Wide-span versionyes
Width500 mm
