WAAD 400 FS 6231908 OBO BETTERMANN Cover, mounting/branch piece wide span system 110 and 160, B400mm, Strip-..

WAAD 400 FS

6231908

OBO BETTERMANN

1 Pcs.

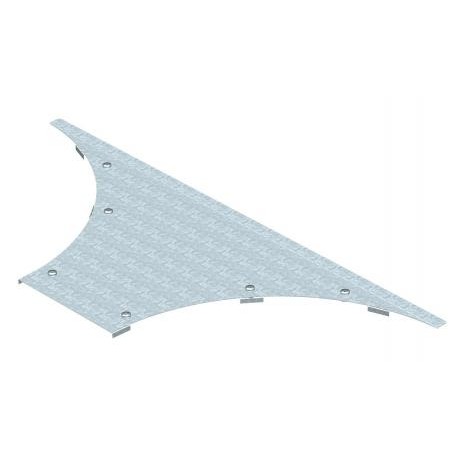

Cover, mounting/branch piece wide span system 110 and 160, B400mm, Strip-galvanised, DIN EN 10147, Steel, St Cover for add-on tee FS. Cover for wide span add-on tee with pre-mounted turn buckles.

Cables > Add-on tee cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Securing branch intersections within large-scale cable routing networks is made straightforward with an Obo Bettermann WAAD 400 FS cover, mounting/branch piece wide span system 110 and 160. Wide span covers protect junction sections from environmental contaminants while keeping cables securely contained within expansive industrial infrastructure.

Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 20,4782 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B400mm
  • Dimension B: 400 mm
  • Dimension H: 15 mm
  • Dimension R: 500 mm
  • Fastening type: Sash lock
  • Height: 110 mm
  • Material: Steel
  • Material thickness: 1,5 mm
  • Number of turn buckles: 6 St.
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes
  • Surface: Strip galvanized

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate20,4782 kg CO2e / 1 Piece
Colourzinc
DimensionB400mm
Dimension B400 mm
Dimension H15 mm
Dimension R500 mm
Fastening typeSash lock
Height110 mm
MaterialSteel
Material thickness1,5 mm
Number of turn buckles6 St.
Plate thickness1,5 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
SurfaceStrip galvanized
Wide-span versionyes
Width400 mm
