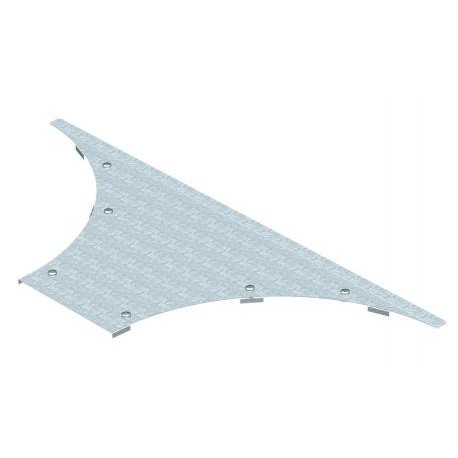

OBO BETTERMANN WAAD 200 FS WAAD 200 FS 6231900 OBO BETTERMANN Cover, mounting/branch piece wide span system 110 and 160, B200mm, Strip-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WAAD 200 FS 6231900 OBO BETTERMANN Cover, mounting/branch piece wide span system 110 and 160, B200mm, Strip-..

WAAD 200 FS

6231900

OBO BETTERMANN

1 Pcs.

Cover, mounting/branch piece wide span system 110 and 160, B200mm, Strip-galvanised, DIN EN 10147, Steel, St Covers for single branches WAAD 200 FS, wide span system 110 and 160 B200mm Steel, St, strip galvanized, DIN EN 10346 Cover for add-on tee FS. Cover for wide span add-on tee with pre-mounted turn buckles.

Cables > Add-on tee cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate9,535 kg CO2e / 1 Piece
Colourzinc
DimensionB200mm
Dimension B200 mm
Dimension H15 mm
Dimension R500 mm
Fastening typeSash lock
Height110 mm
MaterialSteel
Material thickness1,5 mm
Number of turn buckles6 St.
Plate thickness1,5 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
SurfaceStrip galvanized
Wide-span versionyes
Width200 mm

ETIM for 6231900 Cable tray, ladder and wire basket systems (EC002401)
Feature Name Feature Value
Width (EF000008) 200 mm
Suitable for cable tray (EF005166) Yes
Suitable for cable ladder (EF005165) Yes
Type of fastening (EF002442) Turnbuckle
Material (EF002169) Steel
Surface protection (EF000139) Pre-galvanised

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
