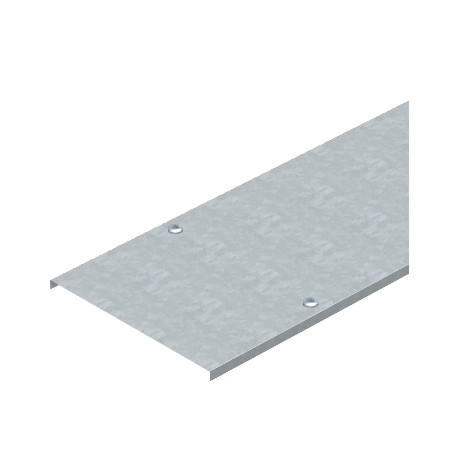

OBO BETTERMANN DRL 600 FS DRL 600 FS 6052606 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 600x3000, Strip-galv.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DRL 600 FS 6052606 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 600x3000, Strip-galv..

DRL 600 FS

6052606

OBO BETTERMANN

3 m.

Cover with sash lock for cable tray and cable ladder, 600x3000, Strip-galvanised, DIN EN 10147, Steel, St Screw cover DRL 600 FS, p/band.portac.y band.de esc. 600x3000 Steel, St, galvanized in strip, DIN EN 10346 Cover with turn buckle FS. Cover for cable trays and cable ladders with turn buckles.When using covers outdoors, additional measures against the influence of wind must be taken.

Cables > Cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cover with sash lock for cable tray and cable ladder, specifically the Obo Bettermann DRL 600 FS, secures and protects electrical wiring runs within heavy infrastructure networks. These turnbuckle-fastened covers safeguard cables from physical impact and environmental exposure.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Cover width (EF005146): 600 mm
  • Material thickness (EF000386): 1.25 mm
  • Suitable for cable tray (EF005166): Yes
  • Suitable for wire mesh tray (EF005163): No
  • Suitable for cable ladder (EF005165): Yes
  • Length (EF001438): 3000 mm
  • Type of fastening (EF002442): Turnbuckle
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Pre-galvanised

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate16,783 kg CO2e / 1 Meter
Colourzinc
Dimension600x3000
Dimension B600 mm
Dimension H15 mm
Fastening typeSash lock
Height35 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Number of turn buckles6 St.
Plate thickness0,05 in
Plate thickness1,25 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanized
Width600 mm
Width24 in
