View larger
Images are for illustrative purposes only. Please refer to data sheet for details

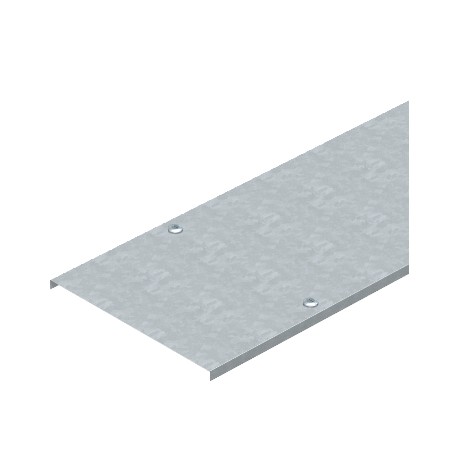

DRL 500 DD 6052718 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 500x3000, Zinc-alumi..
DRL 500 DD
6052718
OBO BETTERMANN
3 m.
Cover with sash lock for cable tray and cable ladder, 500x3000, Zinc-aluminium coated, double-dip, Steel, St
Cover with turn buckle DD. Cover for cable trays and cable ladders with turn buckles.When using covers outdoors, additional measures against the influence of wind must be taken.
Cables > Cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 14,1077 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 500x3000 |
| Dimension B | 500 mm |
| Dimension H | 15 mm |
| Fastening type | Sash lock |
| Height | 35 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Number of turn buckles | 6 St. |
|---|---|
| Plate thickness | 1,25 mm |
| Plate thickness | 0,05 in |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Width | 500 mm |
| Width | 20 in |
