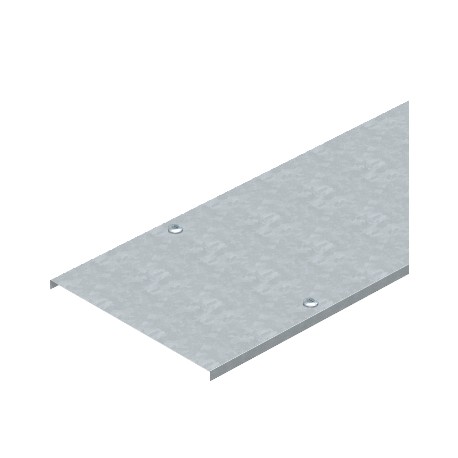

OBO BETTERMANN DRL 400 DD DRL 400 DD 6052715 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 400x3000, Zinc-alumi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DRL 400 DD 6052715 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 400x3000, Zinc-alumi..

DRL 400 DD

6052715

OBO BETTERMANN

3 m.

Cover with sash lock for cable tray and cable ladder, 400x3000, Zinc-aluminium coated, double-dip, Steel, St Screw cover DRL 400 DD, p/band.porta.y band.de esc. 400x3000 Steel, St, Galvanized in zinc/aluminum band, Double Dip, DIN EN 10346 Lid with DD swivel screw. Lid for cable trays and ladder tray with swivel screws. For outdoor use of the caps, they must be fastened with additional staples to prevent damage in the event of wind.

Cables > Cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann DRL 400 DD 6052715 cover with sash lock functions as a secure protective barrier for cable tray and cable ladder networks, shielding internal wiring from external hazards and environmental conditions. Reliable covers of this type ensure long-term mechanical protection for heavy electrical distribution architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Cover width (EF005146): 400 mm
  • Material thickness (EF000386): 1 mm
  • Suitable for cable tray (EF005166): Yes
  • Suitable for wire mesh tray (EF005163): No
  • Suitable for cable ladder (EF005165): Yes
  • Length (EF001438): 3000 mm
  • Type of fastening (EF002442): Turnbuckle
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Continuously galvanised zinc-aluminium

More info

▲
Transverse bead from 500 mm width.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
