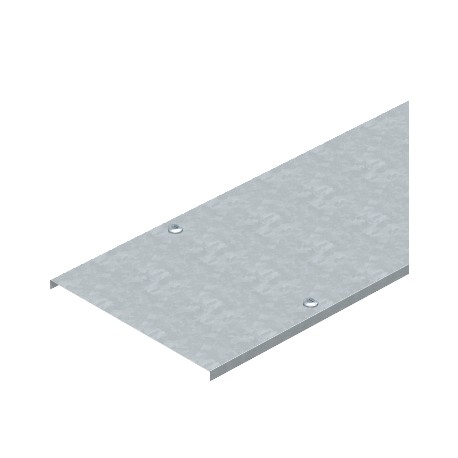

OBO BETTERMANN DRL 300 FS DRL 300 FS 6052304 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 300x3000, Strip-galv.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DRL 300 FS 6052304 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 300x3000, Strip-galv..

DRL 300 FS

6052304

OBO BETTERMANN

3 m.

Cover with sash lock for cable tray and cable ladder, 300x3000, Strip-galvanised, DIN EN 10147, Steel, St Cover with turn buckle FS. Cover for cable trays and cable ladders with turn buckles.When using covers outdoors, additional measures against the influence of wind must be taken.

Cables > Cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing secure enclosure for routing runs, the DRL 300 FS by Obo Bettermann is a cover with sash lock for cable tray and cable ladder used to protect industrial wiring against external hazards. Enclosure covers prevent environmental debris accumulation in overhead or underfloor runs, ensuring long-term system reliability. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 5,9653 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 300x3000
  • Dimension B: 300 mm
  • Dimension H: 15 mm
  • Fastening type: Sash lock
  • Height: 35 mm
  • Length: 3000 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Number of turn buckles: 6 St.
  • Plate thickness: 0,04 in
  • Plate thickness: 1 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate5,9653 kg CO2e / 1 Meter
Colourzinc
Dimension300x3000
Dimension B300 mm
Dimension H15 mm
Fastening typeSash lock
Height35 mm
Length3000 mm
Maintain electrical functionsyes
MaterialSteel
Number of turn buckles6 St.
Plate thickness0,04 in
Plate thickness1 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanized
Width300 mm
Width12 in
