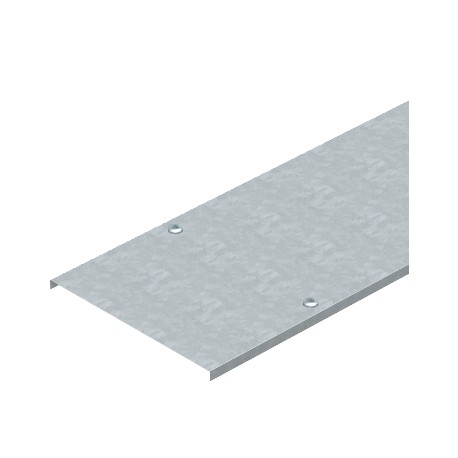

OBO BETTERMANN DRL 300 DD DRL 300 DD 6052712 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 300x3000, Zinc-alumi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DRL 300 DD 6052712 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 300x3000, Zinc-alumi..

DRL 300 DD

6052712

OBO BETTERMANN

3 m.

Cover with sash lock for cable tray and cable ladder, 300x3000, Zinc-aluminium coated, double-dip, Steel, St Cover with turn buckle DD. Cover for cable trays and cable ladders with turn buckles.When using covers outdoors, additional measures against the influence of wind must be taken.

Cables > Cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann part number DRL 300 DD is a cover with a sash lock for cable trays and cable ladders. Lids of this type enclose routing paths to secure wiring against physical intrusion and environmental contaminants.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 5,9476 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 300x3000
  • Dimension B: 300 mm
  • Dimension H: 15 mm
  • Fastening type: Sash lock
  • Height: 35 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Number of turn buckles: 6 St.
  • Plate thickness: 1 mm
  • Plate thickness: 0,04 in
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate5,9476 kg CO2e / 1 Meter
Colourzinc
Dimension300x3000
Dimension B300 mm
Dimension H15 mm
Fastening typeSash lock
Height35 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Number of turn buckles6 St.
Plate thickness1 mm
Plate thickness0,04 in
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanised zinc/aluminium, Double Dip
Width12 in
Width300 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
