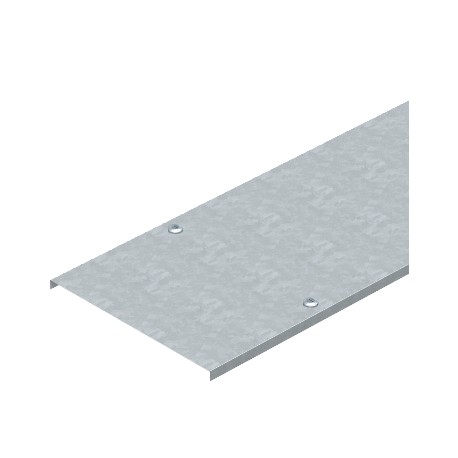

OBO BETTERMANN DRL 200 FS DRL 200 FS 6052207 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 200x3000, Strip-galv.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DRL 200 FS 6052207 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 200x3000, Strip-galv..

DRL 200 FS

6052207

OBO BETTERMANN

3 m.

Cover with sash lock for cable tray and cable ladder, 200x3000, Strip-galvanised, DIN EN 10147, Steel, St Cover with turn buckle FS. Cover for cable trays and cable ladders with turn buckles.When using covers outdoors, additional measures against the influence of wind must be taken.

Cables > Cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilized extensively in industrial setups, this Obo Bettermann cover with sash lock for cable tray and cable ladder locks down cable routing paths to safeguard vital electrical networks from outside interference.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 4,1977 kg CO2e / 1 Meter
  • Colour: zinc
  • Dimension: 200x3000
  • Dimension B: 200 mm
  • Dimension H: 15 mm
  • Fastening type: Sash lock
  • Height: 35 mm
  • Length: 3000 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Number of turn buckles: 6 St.
  • Plate thickness: 0,04 in
  • Plate thickness: 1 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate4,1977 kg CO2e / 1 Meter
Colourzinc
Dimension200x3000
Dimension B200 mm
Dimension H15 mm
Fastening typeSash lock
Height35 mm
Length3000 mm
Maintain electrical functionsyes
MaterialSteel
Number of turn buckles6 St.
Plate thickness0,04 in
Plate thickness1 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanized
Width200 mm
Width8 in
