DRL 200 DD 6052709 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 200x3000, Zinc-alumi..
DRL 200 DD
6052709
OBO BETTERMANN
3 m.

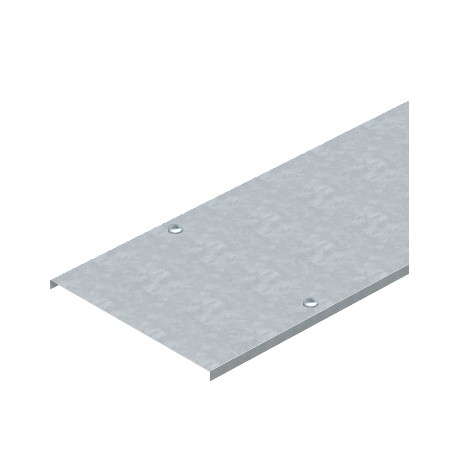

Cover with sash lock for cable tray and cable ladder, 200x3000, Zinc-aluminium coated, double-dip, Steel, St
Cover with turn buckle DD. Cover for cable trays and cable ladders with turn buckles.When using covers outdoors, additional measures against the influence of wind must be taken.
Cables > Cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann part number DRL 200 DD is a cover featuring a sash lock for cable trays and cable ladders. These protective elements close off raceways to shield interior electrical conductors from damage and debris.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 4,1787 kg CO2e / 1 Meter
- Colour: zinc
- Dimension: 200x3000
- Dimension B: 200 mm
- Dimension H: 15 mm
- Fastening type: Sash lock
- Height: 35 mm
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Steel
- Number of turn buckles: 6 St.
- Plate thickness: 0,04 in
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Suitable for cable ladder: yes
- Suitable for cable tray: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 4,1787 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 200x3000 |
| Dimension B | 200 mm |
| Dimension H | 15 mm |
| Fastening type | Sash lock |
| Height | 35 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Number of turn buckles | 6 St. |
|---|---|
| Plate thickness | 0,04 in |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Width | 200 mm |
| Width | 8 in |
