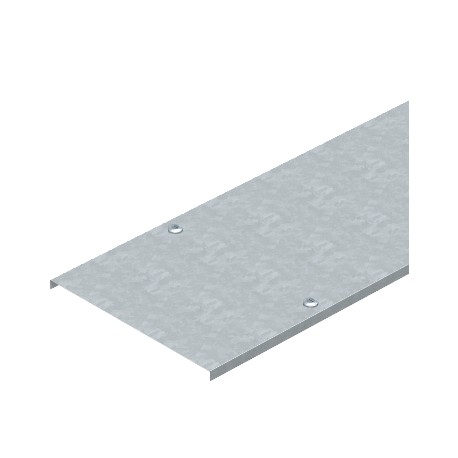

DRL 100 DD 6052703 OBO BETTERMANN Cover with sash lock for cable tray and cable ladder, 100x3000, Zinc-alumi..
DRL 100 DD
6052703
OBO BETTERMANN
3 m.
Cover with sash lock for cable tray and cable ladder, 100x3000, Zinc-aluminium coated, double-dip, Steel, St
Cover with turn buckle DD. Cover for cable trays and cable ladders with turn buckles.When using covers outdoors, additional measures against the influence of wind must be taken.
Cables > Cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann DRL 100 DD is a cover with a sash lock designed for cable trays and ladders. Industrial raceway covers prevent physical damage to bundled electrical conductors deployed throughout commercial and factory floors.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 2,4032 kg CO2e / 1 Meter
- Colour: zinc
- Dimension: 100x3000
- Dimension B: 100 mm
- Dimension H: 15 mm
- Fastening type: Sash lock
- Height: 35 mm
- Length: 3000 mm
- Maintain electrical functions: no
- Material: Steel
- Number of turn buckles: 6 St.
- Plate thickness: 1 mm
- Plate thickness: 0,03 in
- Rustproof steel, pickled: no
- Suitable for cable ladder: yes
- Suitable for cable tray: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,4032 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 100x3000 |
| Dimension B | 100 mm |
| Dimension H | 15 mm |
| Fastening type | Sash lock |
| Height | 35 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Number of turn buckles | 6 St. |
|---|---|
| Plate thickness | 1 mm |
| Plate thickness | 0,03 in |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Width | 100 mm |
| Width | 4 in |
