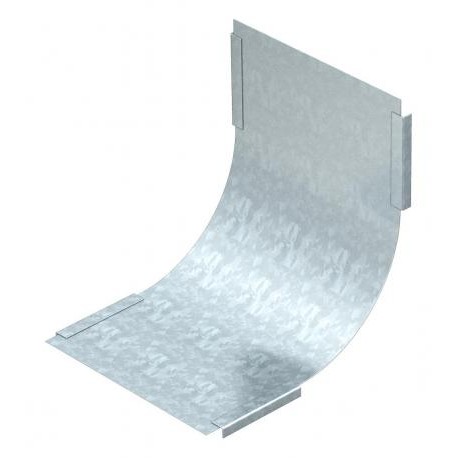

OBO BETTERMANN DBV 600 S FS DBV 600 S FS 7130829 OBO BETTERMANN Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DBV 600 S FS 7130829 OBO BETTERMANN Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Stee..

DBV 600 S FS

7130829

OBO BETTERMANN

1 Pcs.

Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Steel, St Cover for 90° vertical bend, rising, FS. Cover for all rising vertical bends.

Cables > Bend cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann DBV 600 S FS is a cover for a 90-degree vertical rising bend in cable support systems. This protective enclosure shields wiring systems where raceways transition upward along walls or support columns.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • Change of direction: Vertical rising
  • CO2 Footprint (GWP) Cradle-to-Gate: 3,4629 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B600mm
  • Dimension B: 600 mm
  • Fastening type: Cover clamp
  • Hinged: no
  • Maintain electrical functions: no
  • Material: Steel
  • Plate thickness: 0,75 mm
  • Plate thickness: 0,03 in
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: no
  • Suitable for cable tray: yes
  • Suitable for mesh cable tray: no

More info

▲
Bend (angle)90°
Change of directionVertical rising
CO2 Footprint (GWP) Cradle-to-Gate3,4629 kg CO2e / 1 Piece
Colourzinc
DimensionB600mm
Dimension B600 mm
Fastening typeCover clamp
Hingedno
Maintain electrical functionsno
MaterialSteel
Plate thickness0,75 mm
Plate thickness0,03 in
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanized
Width24 in
Width600 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
