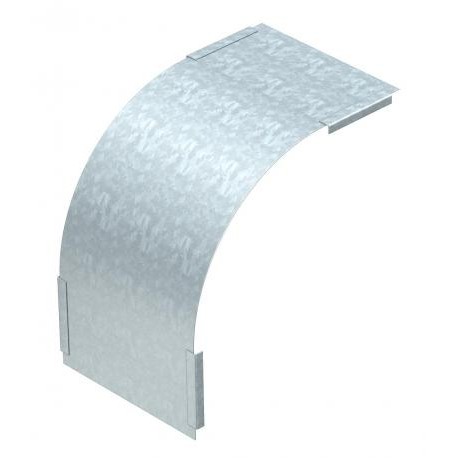

OBO BETTERMANN DBV 60 600 F FS DBV 60 600 F FS 7130876 OBO BETTERMANN Cover for 90° vertical bend falling, B600mm, Strip-galvanised, DIN EN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DBV 60 600 F FS 7130876 OBO BETTERMANN Cover for 90° vertical bend falling, B600mm, Strip-galvanised, DIN EN..

DBV 60 600 F FS

7130876

OBO BETTERMANN

1 Pcs.

Cover for 90° vertical bend falling, B600mm, Strip-galvanised, DIN EN 10147, Steel, St Cover for vertical bend 90° DBV 60 600 F FS, downward B600mm Steel, St, strip galvanized, DIN EN 10346 Cover for 90° vertical bend, falling, FS. Cover for falling vertical bends of side height 60 mm.

Cables > Bend cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for industrial tray assemblies, the Obo Bettermann DBV 60 600 F FS cover for 90° vertical bend falling shields downward routing turns against dust and physical intrusion. Protective shielding preserves cable reliability across complex distribution layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • Change of direction: Vertical, falling
  • CO2 Footprint (GWP) Cradle-to-Gate: 4,8282 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B600mm
  • Dimension B: 600 mm
  • Fastening type: Sash lock
  • Height: 60 mm
  • Hinged: no
  • Maintain electrical functions: no
  • Material: Steel
  • Plate thickness: 0,75 mm
  • Plate thickness: 0,03 in
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: no
  • Suitable for cable tray: yes

More info

▲
Bend (angle)90°
Change of directionVertical, falling
CO2 Footprint (GWP) Cradle-to-Gate4,8282 kg CO2e / 1 Piece
Colourzinc
DimensionB600mm
Dimension B600 mm
Fastening typeSash lock
Height60 mm
Hingedno
Maintain electrical functionsno
MaterialSteel
Plate thickness0,75 mm
Plate thickness0,03 in
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanized
Width600 mm
Width24 in
