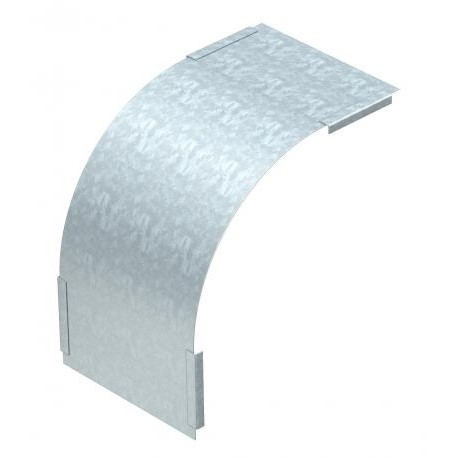

OBO BETTERMANN DBV 60 400 F FS DBV 60 400 F FS 7130868 OBO BETTERMANN Cover for 90° vertical bend falling, B400mm, Strip-galvanised, DIN EN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DBV 60 400 F FS 7130868 OBO BETTERMANN Cover for 90° vertical bend falling, B400mm, Strip-galvanised, DIN EN..

DBV 60 400 F FS

7130868

OBO BETTERMANN

1 Pcs.

Cover for 90° vertical bend falling, B400mm, Strip-galvanised, DIN EN 10147, Steel, St Cover for 90° vertical bend, falling, FS. Cover for falling vertical bends of side height 60 mm.

Cables > Bend cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A strip-galvanised cover for 90° vertical bend falling from Obo Bettermann, designated as DBV 60 400 F FS, protects downward directional routing junctions in industrial cable trays. Such covers prevent external debris accumulation over sensitive wiring networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • Change of direction: Vertical, falling
  • CO2 Footprint (GWP) Cradle-to-Gate: 2,5258 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B400mm
  • Dimension B: 400 mm
  • Fastening type: Sash lock
  • Height: 60 mm
  • Hinged: no
  • Maintain electrical functions: no
  • Material: Steel
  • Plate thickness: 0,75 mm
  • Plate thickness: 0,03 in
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: no
  • Suitable for cable tray: yes

More info

▲
Bend (angle)90°
Change of directionVertical, falling
CO2 Footprint (GWP) Cradle-to-Gate2,5258 kg CO2e / 1 Piece
Colourzinc
DimensionB400mm
Dimension B400 mm
Fastening typeSash lock
Height60 mm
Hingedno
Maintain electrical functionsno
MaterialSteel
Plate thickness0,75 mm
Plate thickness0,03 in
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanized
Width400 mm
Width16 in
