View larger
Images are for illustrative purposes only. Please refer to data sheet for details

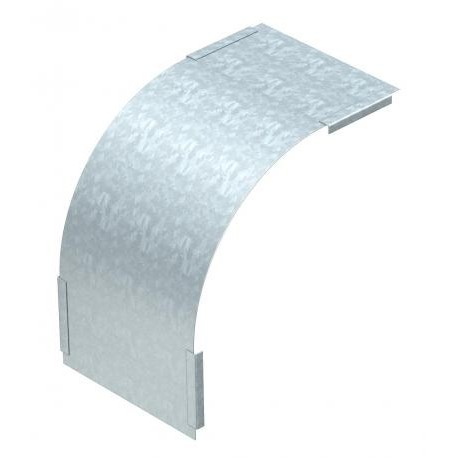

DBV 60 150 F FS 7130856 OBO BETTERMANN Cover for 90° vertical bend falling, B150mm, Strip-galvanised, DIN EN..
DBV 60 150 F FS
7130856
OBO BETTERMANN
1 Pcs.
Cover for 90° vertical bend falling, B150mm, Strip-galvanised, DIN EN 10147, Steel, St
Cover for vertical bend 90° DBV 60 150 F FS, descending B150mm Steel, St, strip galvanized, DIN EN 10346
Cover for 90° vertical curve, descending FS. Cover for vertical downward curves of wing 60.
Cables > Bend cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Cover for falling vertical bends of side height 60.
| Feature Name | Feature Value |
|---|---|
| Angle (EF001218) | 90° |
| Change of direction (EF005210) | Descending vertically |
| Width (EF000008) | 150 mm |
| Suitable for cable tray (EF005166) | Yes |
| Suitable for wire mesh tray (EF005163) | No |
| Suitable for cable ladder (EF005165) | No |
| Type of fastening (EF002442) | Turnbuckle |
| Hinging (EF001076) | No |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
