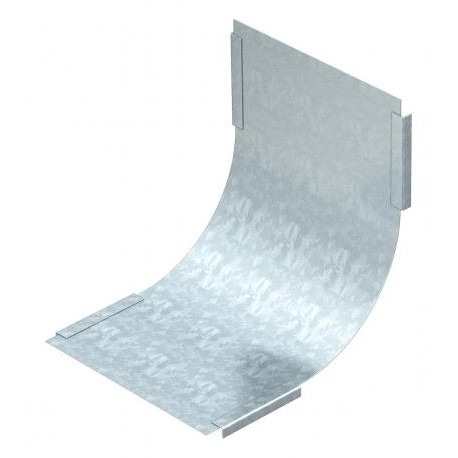

DBV 500 S DD 7131524 OBO BETTERMANN Cover for 90° vertical bend rising, B500mm, Zinc-aluminium coated, doubl..
DBV 500 S DD
7131524
OBO BETTERMANN
1 Pcs.
Cover for 90° vertical bend rising, B500mm, Zinc-aluminium coated, double-dip, Steel, St
Cover for 90° vertical bend, rising, DD. Cover for all rising vertical bends.
Cables > Bend cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical rising |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,8448 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B500mm |
| Dimension B | 500 mm |
| Fastening type | Cover clamp |
| Hinged | no |
| Maintain electrical functions | no |
| Material | Steel |
| Plate thickness | 0,75 mm |
|---|---|
| Plate thickness | 0,03 in |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Width | 20 in |
| Width | 500 mm |
