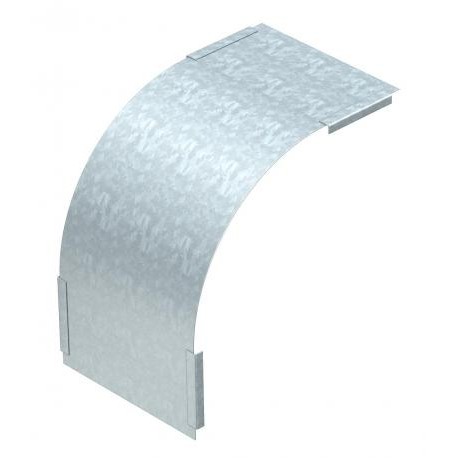

DBV 35 100 F FS 7130764 OBO BETTERMANN Cover for 90° vertical bend falling, Strip-galvanised, DIN EN 10147, ..
DBV 35 100 F FS
7130764
OBO BETTERMANN
1 Pcs.
Cover for 90° vertical bend falling, Strip-galvanised, DIN EN 10147, Steel, St
Cover for 90° vertical bend, falling, FS. Cover for falling vertical bends of side height 35 mm.
Cables > Bend cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,2099 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B100mm |
| Dimension B | 100 mm |
| Fastening type | Sash lock |
| Height | 35 mm |
| Hinged | no |
| Maintain electrical functions | no |
| Material | Steel |
|---|---|
| Plate thickness | 0,75 mm |
| Plate thickness | 0,03 in |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanized |
| Width | 4 in |
| Width | 100 mm |
