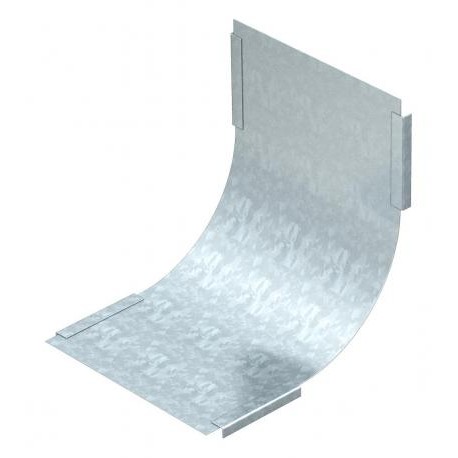

DBV 300 S FS 7130817 OBO BETTERMANN Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Stee..
DBV 300 S FS
7130817
OBO BETTERMANN
1 Pcs.
Cables > Bend cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Protect ascending vertical turns within cable tray networks using the Obo Bettermann DBV 300 S FS cover for 90° vertical bend rising. Strip-galvanised steel construction ensures reliable core protection, keeping power and data cables secure from external contaminants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical rising
- CO2 Footprint (GWP) Cradle-to-Gate: 1,7225 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: B300mm
- Dimension B: 300 mm
- Fastening type: Cover clamp
- Hinged: no
- Maintain electrical functions: no
- Material: Steel
- Plate thickness: 0,75 mm
- Plate thickness: 0,03 in
- Rustproof steel, pickled: no
- Suitable for cable ladder: no
- Suitable for cable tray: yes
- Suitable for mesh cable tray: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical rising |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,7225 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B300mm |
| Dimension B | 300 mm |
| Fastening type | Cover clamp |
| Hinged | no |
| Maintain electrical functions | no |
| Material | Steel |
| Plate thickness | 0,75 mm |
|---|---|
| Plate thickness | 0,03 in |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanized |
| Width | 300 mm |
| Width | 12 in |
