DBV 300 S DD 7131514 OBO BETTERMANN Cover for 90° vertical bend rising, B300mm, Zinc-aluminium coated, doubl..
DBV 300 S DD
7131514
OBO BETTERMANN
1 Pcs.
Cables > Bend cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

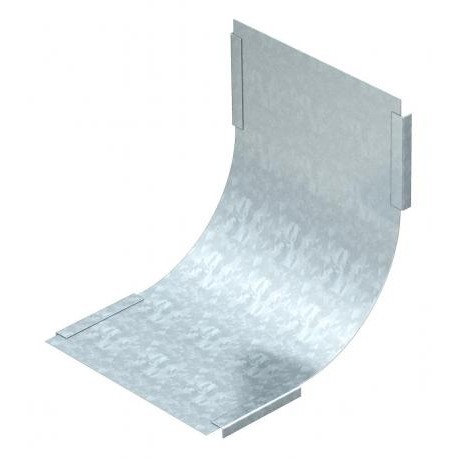

The Obo Bettermann DBV 300 S DD cover for 90° vertical bend rising shields upward routing turns from physical interference and ambient particulate accumulation. Protective plating components are integral to maintaining high safety standards across multi-tier electrical cable tray installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical rising
- CO2 Footprint (GWP) Cradle-to-Gate: 3,3502 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: B300mm
- Dimension B: 300 mm
- Fastening type: Cover clamp
- Hinged: no
- Maintain electrical functions: no
- Material: Steel
- Plate thickness: 0,75 mm
- Plate thickness: 0,03 in
- Rustproof steel, pickled: no
- Suitable for cable ladder: no
- Suitable for cable tray: yes
- Suitable for mesh cable tray: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical rising |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,3502 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B300mm |
| Dimension B | 300 mm |
| Fastening type | Cover clamp |
| Hinged | no |
| Maintain electrical functions | no |
| Material | Steel |
| Plate thickness | 0,75 mm |
|---|---|
| Plate thickness | 0,03 in |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Width | 12 in |
| Width | 300 mm |
