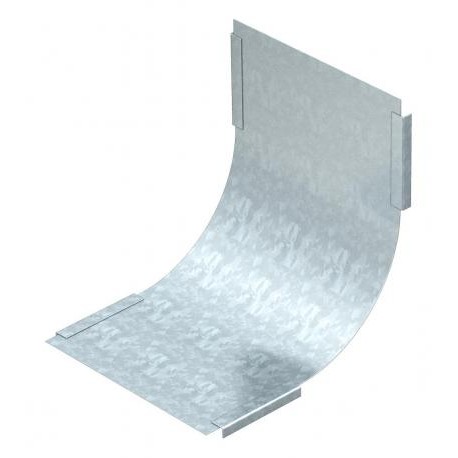

DBV 200 S FS 7130813 OBO BETTERMANN Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Stee..
DBV 200 S FS
7130813
OBO BETTERMANN
1 Pcs.
Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Steel, St
Cover for 90° vertical bend, rising, FS. Cover for all rising vertical bends.
Cables > Bend cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical rising |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1573 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B200mm |
| Dimension B | 200 mm |
| Fastening type | Cover clamp |
| Hinged | no |
| Maintain electrical functions | no |
| Material | Steel |
| Plate thickness | 0,75 mm |
|---|---|
| Plate thickness | 0,03 in |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanized |
| Width | 200 mm |
| Width | 8 in |
