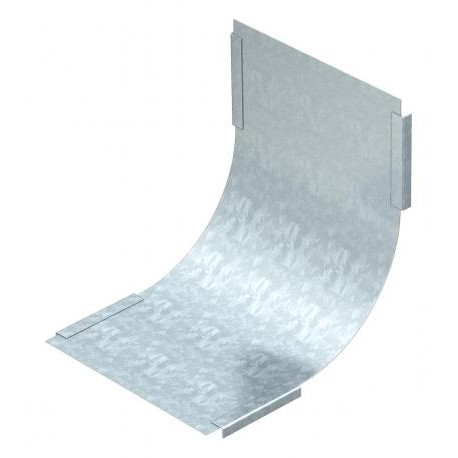

OBO BETTERMANN DBV 150 S FS DBV 150 S FS 7130809 OBO BETTERMANN Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DBV 150 S FS 7130809 OBO BETTERMANN Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Stee..

DBV 150 S FS

7130809

OBO BETTERMANN

1 Pcs.

Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Steel, St Cover for 90° vertical bend, rising, FS. Cover for all rising vertical bends.

Cables > Bend cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann cover for 90° vertical bend rising, part number DBV 150 S FS, secures upward tray routing sections to protect contained electrical lines from environmental wear. Protective covers are standard components in industrial wire management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • Change of direction: Vertical rising
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,8536 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B150mm
  • Dimension B: 150 mm
  • Fastening type: Cover clamp
  • Hinged: no
  • Maintain electrical functions: no
  • Material: Steel
  • Plate thickness: 0,03 in
  • Plate thickness: 0,75 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: no
  • Suitable for cable tray: yes
  • Suitable for mesh cable tray: no

More info

▲
Bend (angle)90°
Change of directionVertical rising
CO2 Footprint (GWP) Cradle-to-Gate0,8536 kg CO2e / 1 Piece
Colourzinc
DimensionB150mm
Dimension B150 mm
Fastening typeCover clamp
Hingedno
Maintain electrical functionsno
MaterialSteel
Plate thickness0,03 in
Plate thickness0,75 mm
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanized
Width6 in
Width150 mm
