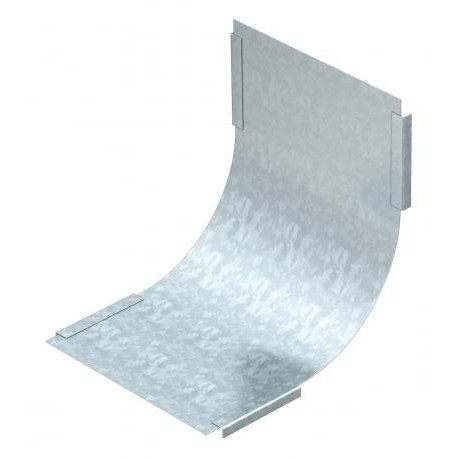

OBO BETTERMANN DBV 150 S DD DBV 150 S DD 7131509 OBO BETTERMANN Cover for 90° vertical bend rising, B150mm, Zinc-aluminium coated, doubl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DBV 150 S DD 7131509 OBO BETTERMANN Cover for 90° vertical bend rising, B150mm, Zinc-aluminium coated, doubl..

DBV 150 S DD

7131509

OBO BETTERMANN

1 Pcs.

Cover for 90° vertical bend rising, B150mm, Zinc-aluminium coated, double-dip, Steel, St Cover for vertical bend 90° DBV 150 S DD, ascending B150mm Steel, St, Galvanized in zinc/aluminum strip, Double Dip, DIN EN 10346 Cover for 90° vertical curve, ascending DD. Cover for all vertical upward curves.

Cables > Bend cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Ascending vertical cable runs require targeted protection at directional transitions, supplied by a rising vertical bend cover that seals the vertical riser. The Obo Bettermann DBV 150 S DD uses cover clamps to securely fasten the shielded barrier over upward routing paths.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle (EF001218): 90°
  • Change of direction (EF005210): Rising vertically
  • Width (EF000008): 150 mm
  • Suitable for cable tray (EF005166): Yes
  • Suitable for wire mesh tray (EF005163): No
  • Suitable for cable ladder (EF005165): No
  • Type of fastening (EF002442): Cover clamp
  • Hinging (EF001076): No
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Continuously galvanised zinc-aluminium

More info

▲
Cover for all rising vertical bends.
