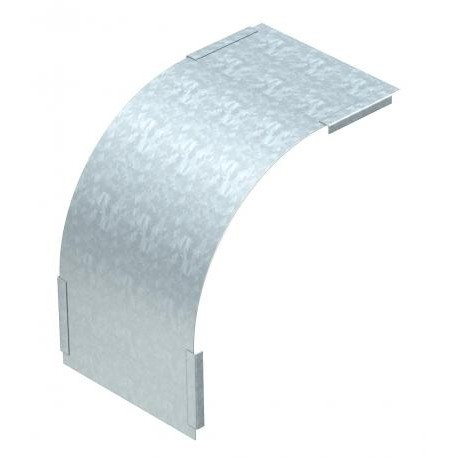

OBO BETTERMANN DBV 110 300 F FS DBV 110 300 F FS 7131038 OBO BETTERMANN Cover for 90° vertical bend falling, B300mm, Strip-galvanised, DIN E.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DBV 110 300 F FS 7131038 OBO BETTERMANN Cover for 90° vertical bend falling, B300mm, Strip-galvanised, DIN E..

DBV 110 300 F FS

7131038

OBO BETTERMANN

1 Pcs.

Cover for 90° vertical bend falling, B300mm, Strip-galvanised, DIN EN 10147, Steel, St Cover for vertical bend 90° DBV 110 300 F FS, down B300mm Steel, St, strip galvanized, DIN EN 10346 Cover for 90° vertical bend 110, falling, FS. Cover for falling vertical bends of side height 110 mm.

Cables > Bend cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cover for 90° vertical bend falling systems encloses downward routing transitions, protecting enclosed power and control cables from falling debris and mechanical stress. This Obo Bettermann DBV 110 300 F FS component integrates cleanly into vertical cable tray configurations to maintain consistent system integrity.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle (EF001218): 90°
  • Change of direction (EF005210): Descending vertically
  • Width (EF000008): 300 mm
  • Suitable for cable tray (EF005166): Yes
  • Suitable for wire mesh tray (EF005163): No
  • Suitable for cable ladder (EF005165): No
  • Type of fastening (EF002442): Turnbuckle
  • Hinging (EF001076): No
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Pre-galvanised

More info

▲
Bend (angle)90°
Change of directionVertical, falling
CO2 Footprint (GWP) Cradle-to-Gate2,4127 kg CO2e / 1 Piece
Colourzinc
DimensionB300mm
Dimension B300 mm
Fastening typeSash lock
Height110 mm
Hingedno
Maintain electrical functionsno
MaterialSteel
Plate thickness0,03 in
Plate thickness0,75 mm
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanized
Width300 mm
Width12 in
