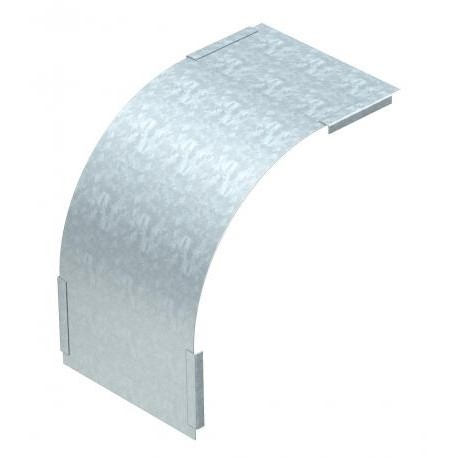

DBV 110 100 F DD 7131556 OBO BETTERMANN Cover for 90° vertical bend falling, B100mm, Zinc-aluminium coated, ..
DBV 110 100 F DD
7131556
OBO BETTERMANN
1 Pcs.
Cover for 90° vertical bend falling, B100mm, Zinc-aluminium coated, double-dip, Steel, St
Cover for 90° vertical bend 110, falling, DD. Cover for falling vertical bends of side height 110 mm.
Cables > Bend cover for cable support system
Tapas
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann DBV 110 100 F DD is a zinc-aluminium coated cover for a 90-degree vertical falling bend. It provides reliable mechanical protection and containment for cables routed along vertical drop sections.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical, falling
- CO2 Footprint (GWP) Cradle-to-Gate: 1,6201 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: B100mm
- Dimension B: 100 mm
- Fastening type: Sash lock
- Height: 110 mm
- Hinged: no
- Maintain electrical functions: no
- Material: Steel
- Plate thickness: 0,03 in
- Plate thickness: 0,75 mm
- Rustproof steel, pickled: no
- Suitable for cable ladder: no
- Suitable for cable tray: yes
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,6201 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | B100mm |
| Dimension B | 100 mm |
| Fastening type | Sash lock |
| Height | 110 mm |
| Hinged | no |
| Maintain electrical functions | no |
| Material | Steel |
|---|---|
| Plate thickness | 0,03 in |
| Plate thickness | 0,75 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Width | 100 mm |
| Width | 4 in |
