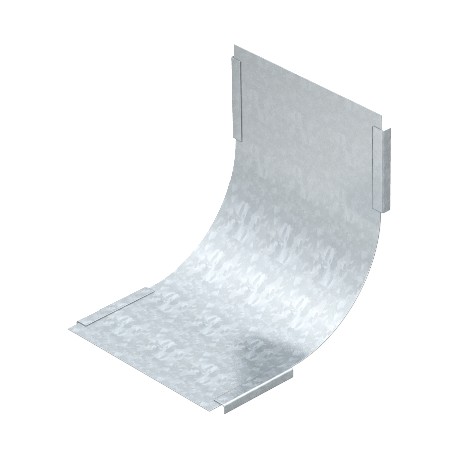

OBO BETTERMANN DBV 100 S FS DBV 100 S FS 7130805 OBO BETTERMANN Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DBV 100 S FS 7130805 OBO BETTERMANN Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Stee..

DBV 100 S FS

7130805

OBO BETTERMANN

1 Pcs.

Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Steel, St Cover for vertical bend 90° DBV 100 S FS, ascending B100mm Steel, St, strip galvanized, DIN EN 10346 Cover for 90° vertical curve, ascending FS. Cover for all vertical upward curves.

Cables > Bend cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Shielding upward vertical routing changes, the Obo Bettermann DBV 100 S FS is an Obo Bettermann Cover for 90° vertical bend rising, Strip-galvanised, DIN EN 10147, Stee.. deployed within industrial raceways. This cover safeguards vertical elbow joints to maintain continuous protection along ascending cable paths.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Angle (EF001218): 90°
  • Change of direction (EF005210): Rising vertically
  • Width (EF000008): 100 mm
  • Suitable for cable tray (EF005166): Yes
  • Suitable for wire mesh tray (EF005163): No
  • Suitable for cable ladder (EF005165): No
  • Type of fastening (EF002442): Cover clamp
  • Hinging (EF001076): No
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Pre-galvanised

More info

▲
Cover for all rising vertical bends.
