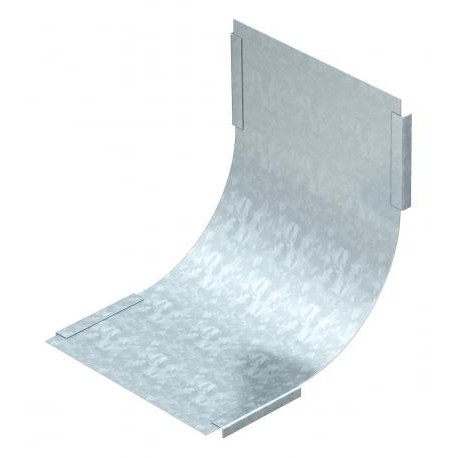

OBO BETTERMANN DBV 100 S DD DBV 100 S DD 7131508 OBO BETTERMANN Cover for 90° vertical bend rising, B100mm, Zinc-aluminium coated, doubl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DBV 100 S DD 7131508 OBO BETTERMANN Cover for 90° vertical bend rising, B100mm, Zinc-aluminium coated, doubl..

DBV 100 S DD

7131508

OBO BETTERMANN

1 Pcs.

Cover for 90° vertical bend rising, B100mm, Zinc-aluminium coated, double-dip, Steel, St Cover for 90° vertical bend, rising, DD. Cover for all rising vertical bends.

Cables > Bend cover for cable support system
Tapas

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann DBV 100 S DD cover for 90° vertical bend rising shields upward routing components from foreign debris and physical hazards. Cable routing covers are routinely deployed in electrical installations to maintain high safety standards and neat organization.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend (angle): 90°
  • Change of direction: Vertical rising
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,1836 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: B100mm
  • Dimension B: 100 mm
  • Fastening type: Cover clamp
  • Hinged: no
  • Maintain electrical functions: no
  • Material: Steel
  • Plate thickness: 0,75 mm
  • Plate thickness: 0,03 in
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: no
  • Suitable for cable tray: yes
  • Suitable for mesh cable tray: no

More info

▲
Bend (angle)90°
Change of directionVertical rising
CO2 Footprint (GWP) Cradle-to-Gate1,1836 kg CO2e / 1 Piece
Colourzinc
DimensionB100mm
Dimension B100 mm
Fastening typeCover clamp
Hingedno
Maintain electrical functionsno
MaterialSteel
Plate thickness0,75 mm
Plate thickness0,03 in
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for mesh cable trayno
SurfaceStrip galvanised zinc/aluminium, Double Dip
Width100 mm
Width4 in
