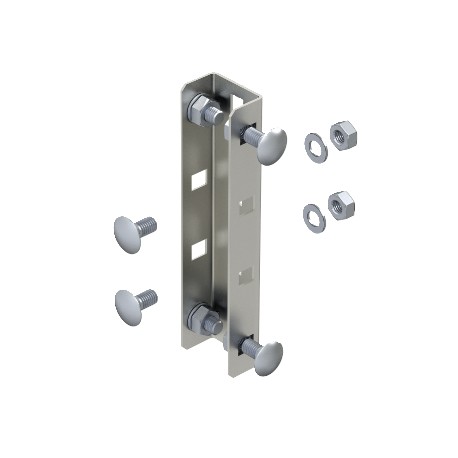

OBO BETTERMANN VUS 3 A4 VUS 3 VA4571 6018520 OBO BETTERMANN U support connector including truss-head bolts, 190x45, Stainless steel,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VUS 3 VA4571 6018520 OBO BETTERMANN U support connector including truss-head bolts, 190x45, Stainless steel,..

VUS 3 A4

6018520

OBO BETTERMANN

1 Pcs.

U support connector including truss-head bolts, 190x45, Stainless steel, grade 316 Ti, VA, 1.4571 U support connector A4. U support connector to connect US 3 supports.

Cables > Coupler for support/profile rail
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann VUS 3 A4 U support connector including truss-head bolts provides a corrosion-resistant joining solution for structural U-profile systems in specialized industrial applications. Such connectors are implemented to securely couple modular metal profiles, ensuring structural continuity throughout cable support networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 2,8545 kg CO2e / 1 Piece
  • Colour: stainless steel
  • Dimension: 27,5 x 45 x190
  • Dimension: 190x45
  • Drill hole spacing, centre: 50 mm
  • Height: 27,5 mm
  • Length: 190 mm
  • Material: Stainless steel 1.4571
  • Suitable for profile shapes: U profile
  • Surface: Bright, treated
  • Width: 45 mm
  • With screw accessories: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,8545 kg CO2e / 1 Piece
Colourstainless steel
Dimension27,5 x 45 x190
Dimension190x45
Drill hole spacing, centre50 mm
Height27,5 mm
Length190 mm
MaterialStainless steel 1.4571
Suitable for profile shapesU profile
SurfaceBright, treated
Width45 mm
With screw accessoriesyes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
