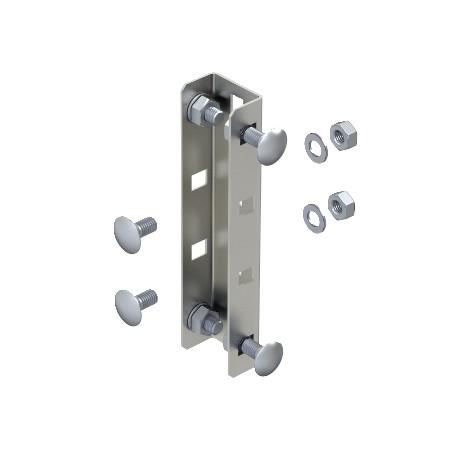

OBO BETTERMANN VUS 3 A2 VUS 3 VA4301 6018517 OBO BETTERMANN U support connector including truss-head bolts, 190x45, Stained, Stainle.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VUS 3 VA4301 6018517 OBO BETTERMANN U support connector including truss-head bolts, 190x45, Stained, Stainle..

VUS 3 A2

6018517

OBO BETTERMANN

1 Pcs.

U support connector including truss-head bolts, 190x45, Stained, Stainless steel, grade 304, VA, 1.4301 U support connector A2. U support connector to connect US 3 supports.

Cables > Coupler for support/profile rail
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as an Obo Bettermann VUS 3 A2 U support connector including truss-head bolts, this component provides reliable mechanical coupling for U-profile channels in corrosive or sensitive environments. Profile connectors are widely integrated into electrical routing frameworks to connect structural support sections efficiently and securely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 2,8498 kg CO2e / 1 Piece
  • Colour: stainless steel
  • Dimension: 190x45
  • Dimension: 27,5 x 45 x 190
  • Drill hole spacing, centre: 50 mm
  • Height: 27,5 mm
  • Length: 190 mm
  • Material: Stainless steel 1.4301
  • Rustproof steel, pickled: no
  • Suitable for profile shapes: U profile
  • Surface: Bright, treated
  • Width: 45 mm
  • With screw accessories: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,8498 kg CO2e / 1 Piece
Colourstainless steel
Dimension190x45
Dimension27,5 x 45 x 190
Drill hole spacing, centre50 mm
Height27,5 mm
Length190 mm
MaterialStainless steel 1.4301
Rustproof steel, pickledno
Suitable for profile shapesU profile
SurfaceBright, treated
Width45 mm
With screw accessoriesyes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
