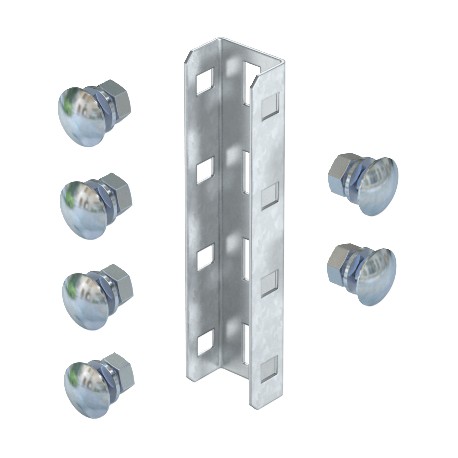

OBO BETTERMANN VUS 3 FT VUS 3 FT 6018513 OBO BETTERMANN U support connector including truss-head bolts, 190x45, Hot-dip galvanised, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VUS 3 FT 6018513 OBO BETTERMANN U support connector including truss-head bolts, 190x45, Hot-dip galvanised, ..

VUS 3 FT

6018513

OBO BETTERMANN

10 Pcs.

U support connector including truss-head bolts, 190x45, Hot-dip galvanised, DIN EN ISO 1461, Steel, St U support connector FT. U support connector to connect US 3 supports.

Cables > Coupler for support/profile rail
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as an Obo Bettermann VUS 3 FT U support connector including truss-head bolts, this hardware part ensures secure mechanical linkage and alignment for structural U-profile channels. Profile connectors are commonly applied in electrical installations to join framing components seamlessly, creating durable support skeletons for cable pathways. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,2584 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 27,5 x 45 x 190
  • Dimension: 190x45
  • Drill hole spacing, centre: 50 mm
  • Height: 27,5 mm
  • Length: 190 mm
  • Material: Steel
  • Rustproof steel, pickled: no
  • Suitable for profile shapes: U profile
  • Surface: Hot-dip galvanised
  • Width: 45 mm
  • With screw accessories: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,2584 kg CO2e / 1 Piece
Colourzinc
Dimension27,5 x 45 x 190
Dimension190x45
Drill hole spacing, centre50 mm
Height27,5 mm
Length190 mm
MaterialSteel
Rustproof steel, pickledno
Suitable for profile shapesU profile
SurfaceHot-dip galvanised
Width45 mm
With screw accessoriesyes
