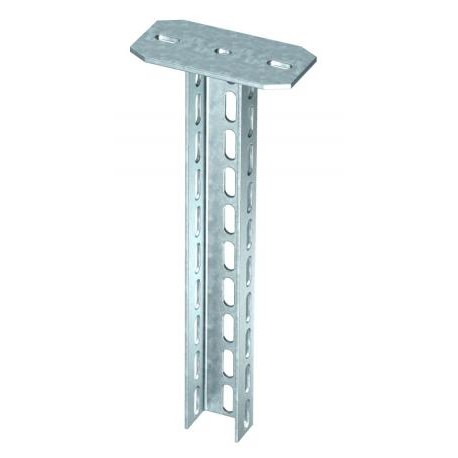

OBO BETTERMANN US 7 K 90 FT US 7 K 90 FT 6339166 OBO BETTERMANN Suspended support with welded head plate, 70x50x900, Hot-dip galvanised,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 7 K 90 FT 6339166 OBO BETTERMANN Suspended support with welded head plate, 70x50x900, Hot-dip galvanised,..

US 7 K 90 FT

6339166

OBO BETTERMANN

1 Pcs.

Suspended support with welded head plate, 70x50x900, Hot-dip galvanised, DIN EN ISO 1461, Steel, St US 7 K 90 FT bracket, with welded head 70x50x900 Steel, St, Hot dipped galvanized, DIN EN ISO 1461 US 7 FT hanging profile. Hanging support (U-profile) measuring 70 x 50 mm with welded head.

Cables > Ceiling profile for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Obo Bettermann US 7 K 90 FT suspended support with welded head plate functions as a primary vertical hanger within heavy-duty industrial cable support architectures. Technicians use these reinforced profiles to construct secure ceiling anchor points capable of bearing extensive multi-tier cabling systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 900 mm
  • Profile width (EF006158): 70 mm
  • Profile height (EF006159): 50 mm
  • Model (EF000010): U-profile
  • Load bearing capacity (EF002918): 11 kN
  • Suitable for circuit integrity (EF007806): Yes
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized
  • Weight (EF000167): 4.7 kg

More info

▲
For fastening to horizontal concrete ceilings and steel girders. For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 61.
