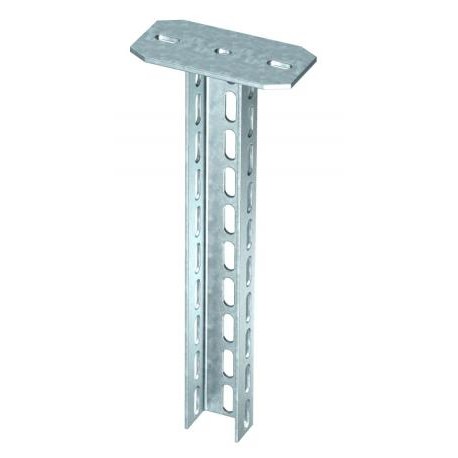

US 7 K 80 FT 6339131 OBO BETTERMANN Suspended support with welded head plate, 70x50x800, Hot-dip galvanised,..
US 7 K 80 FT
6339131
OBO BETTERMANN
1 Pcs.
Cables > Ceiling profile for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann US 7 K 80 FT suspended support with welded head plate functions as a structural mounting component designed to securely hold cable management systems in industrial and commercial installations. This robust support provides reliable load-bearing capabilities for routing heavy cable runs along walls or ceilings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bracket length 200: 8,3 kN
- Bracket length 400: 5 kN
- Bracket length 600: 3,5 kN
- CO2 Footprint (GWP) Cradle-to-Gate: 10,1749 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: 70x50x800
- Dimension L: 800 mm
- Height: 50 mm
- Length: 800 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 4 mm
- Maximum tensile load: 11 kN
- Surface: Hot-dip galvanised
- Version for: U profile
- Width: 70 mm
More info
▲| Bracket length 200 | 8,3 kN |
|---|---|
| Bracket length 400 | 5 kN |
| Bracket length 600 | 3,5 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 10,1749 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 70x50x800 |
| Dimension L | 800 mm |
| Height | 50 mm |
| Length | 800 mm |
|---|---|
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 4 mm |
| Maximum tensile load | 11 kN |
| Surface | Hot-dip galvanised |
| Version for | U profile |
| Width | 70 mm |
