OBO BETTERMANN US 7 K 70 A2 US 7 K 70 VA4301 6338666 OBO BETTERMANN Suspended support with welded head plate, 70x50x700, Stained, Stainl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 7 K 70 VA4301 6338666 OBO BETTERMANN Suspended support with welded head plate, 70x50x700, Stained, Stainl..

US 7 K 70 A2

6338666

OBO BETTERMANN

1 Pcs.

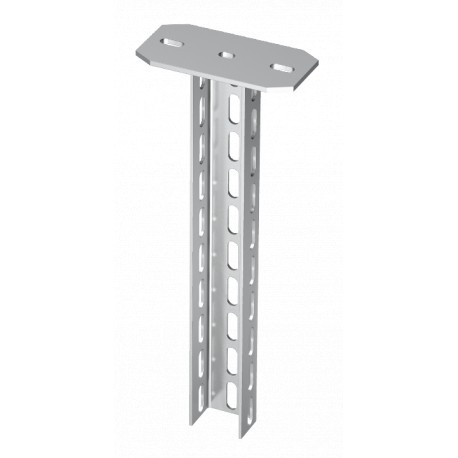

Suspended support with welded head plate, 70x50x700, Stained, Stainless steel, grade 304, VA, 1.4301 US 7 support A2. Suspended support (U profile) with welded head plate.

Cables > Ceiling profile for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A suspended support with welded head plate, Obo Bettermann part number US 7 K 70 A2 functions as a robust mounting bracket for suspending heavy-duty cable tray routes from structural overhead elements. Installers use these supports across commercial and plant environments to route and secure cable infrastructure efficiently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bracket length 200: 8,3 kN
  • Bracket length 400: 5 kN
  • Bracket length 600: 3,5 kN
  • CO2 Footprint (GWP) Cradle-to-Gate: 22,9287 kg CO2e / 1 Piece
  • Colour: stainless steel
  • Dimension: 70x50x700
  • Height: 50 mm
  • Length: 700 mm
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4301
  • Material thickness: 4 mm
  • Maximum tensile load: 11 kN
  • Surface: Bright, treated
  • Type of perforation: 3 sides perforated
  • Version for: U profile
  • Width: 70 mm

More info

▲
Bracket length 2008,3 kN
Bracket length 4005 kN
Bracket length 6003,5 kN
CO2 Footprint (GWP) Cradle-to-Gate22,9287 kg CO2e / 1 Piece
Colourstainless steel
Dimension70x50x700
Height50 mm
Length700 mm
Maintain electrical functionsno
MaterialStainless steel 1.4301
Material thickness4 mm
Maximum tensile load11 kN
SurfaceBright, treated
Type of perforation3 sides perforated
Version forU profile
Width70 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
