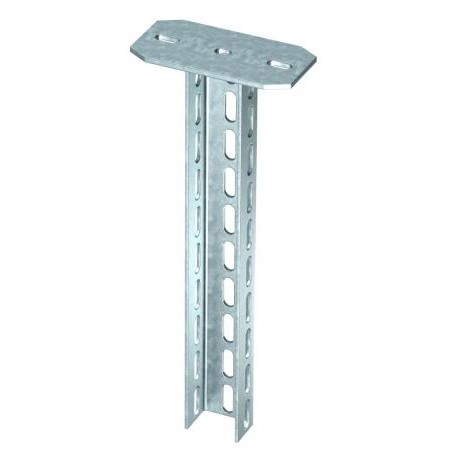

OBO BETTERMANN US 7 K 70 FT US 7 K 70 FT 6339115 OBO BETTERMANN Suspended support with welded head plate, 70x50x700, Hot-dip galvanised,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 7 K 70 FT 6339115 OBO BETTERMANN Suspended support with welded head plate, 70x50x700, Hot-dip galvanised,..

US 7 K 70 FT

6339115

OBO BETTERMANN

1 Pcs.

Suspended support with welded head plate, 70x50x700, Hot-dip galvanised, DIN EN ISO 1461, Steel, St US 7 K 70 FT bracket, with welded head 70x50x700 Steel, St, Hot dipped galvanized, DIN EN ISO 1461 US 7 FT hanging profile. Hanging support (U-profile) measuring 70 x 50 mm with welded head.

Cables > Ceiling profile for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy structural loads in large industrial plants rely on components like this Obo Bettermann US 7 K 70 FT suspended support with welded head plate to anchor overhead cable tray routing. The hot-dip galvanized U-profile secures wiring paths securely to overhead building substrates.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 700 mm
  • Profile width (EF006158): 70 mm
  • Profile height (EF006159): 50 mm
  • Model (EF000010): U-profile
  • Load bearing capacity (EF002918): 11 kN
  • Suitable for circuit integrity (EF007806): Yes
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized
  • Weight (EF000167): 3.87 kg

More info

▲
For fastening to horizontal concrete ceilings and steel girders. For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 61.
