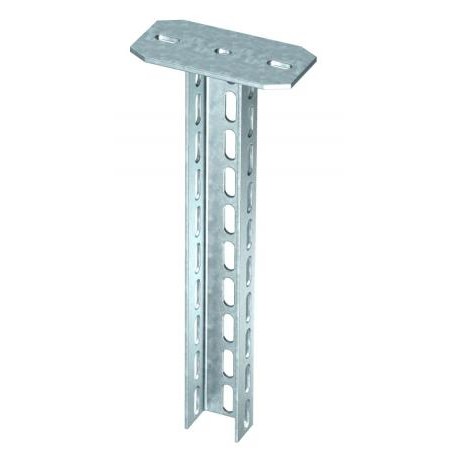

OBO BETTERMANN US 7 K 50 FT US 7 K 50 FT 6339077 OBO BETTERMANN Suspended support with welded head plate, 70x50x500, Hot-dip galvanised,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 7 K 50 FT 6339077 OBO BETTERMANN Suspended support with welded head plate, 70x50x500, Hot-dip galvanised,..

US 7 K 50 FT

6339077

OBO BETTERMANN

1 Pcs.

Suspended support with welded head plate, 70x50x500, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Bracket, with welded head, 70x50x500, hot-dip galvanised steel, DIN EN ISO 1461 US 7 support FT. Suspended support (U profile) of dimensions 70 x 50 mm with welded head plate.

Cables > Ceiling profile for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann US 7 K 50 FT suspended support with welded head plate offers dependable anchoring for industrial cable tray runs and electrical distribution networks. These structural steel components help technicians anchor overhead cable systems securely to concrete or steel frameworks. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Bracket length 200: 8,3 kN
  • Bracket length 400: 5 kN
  • Bracket length 600: 3,5 kN
  • CO2 Footprint (GWP) Cradle-to-Gate: 6,8207 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 70x50x500
  • Dimension L: 500 mm
  • Height: 50 mm
  • Length: 500 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 4 mm
  • Maximum tensile load: 11 kN
  • Surface: Hot-dip galvanised
  • Version for: U profile
  • Width: 70 mm

More info

▲
Bracket length 2008,3 kN
Bracket length 4005 kN
Bracket length 6003,5 kN
CO2 Footprint (GWP) Cradle-to-Gate6,8207 kg CO2e / 1 Piece
Colourzinc
Dimension70x50x500
Dimension L500 mm
Height50 mm
Length500 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness4 mm
Maximum tensile load11 kN
SurfaceHot-dip galvanised
Version forU profile
Width70 mm
