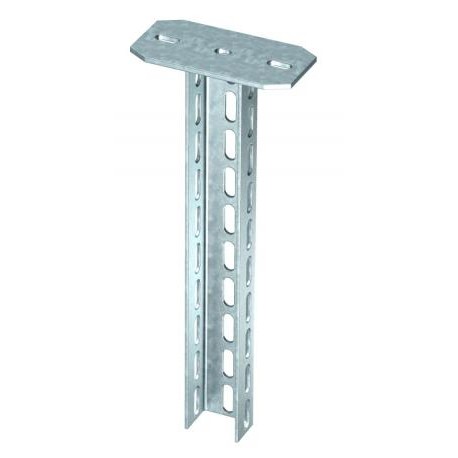

OBO BETTERMANN US 7 K 160 FT US 7 K 160 FT 6339247 OBO BETTERMANN Suspended support with welded head plate, 70x50x1600, Hot-dip galvanise.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 7 K 160 FT 6339247 OBO BETTERMANN Suspended support with welded head plate, 70x50x1600, Hot-dip galvanise..

US 7 K 160 FT

6339247

OBO BETTERMANN

1 Pcs.

Suspended support with welded head plate, 70x50x1600, Hot-dip galvanised, DIN EN ISO 1461, Steel, St US 7 support FT. Suspended support (U profile) of dimensions 70 x 50 mm with welded head plate.

Cables > Ceiling profile for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann US 7 K 160 FT suspended support with welded head plate offers high-capacity anchoring for heavy-duty electrical wiring trays and industrial raceways. These structural steel supports maintain secure vertical suspension in demanding operational plants. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Bracket length 200: 7,5 kN
  • Bracket length 400: 4,2 kN
  • Bracket length 600: 2,9 kN
  • CO2 Footprint (GWP) Cradle-to-Gate: 17,2723 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 70x50x1600
  • Dimension L: 1600 mm
  • Height: 50 mm
  • Length: 1600 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 4 mm
  • Maximum tensile load: 11 kN
  • Surface: Hot-dip galvanised
  • Version for: U profile
  • Width: 70 mm

More info

▲
Bracket length 2007,5 kN
Bracket length 4004,2 kN
Bracket length 6002,9 kN
CO2 Footprint (GWP) Cradle-to-Gate17,2723 kg CO2e / 1 Piece
Colourzinc
Dimension70x50x1600
Dimension L1600 mm
Height50 mm
Length1600 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness4 mm
Maximum tensile load11 kN
SurfaceHot-dip galvanised
Version forU profile
Width70 mm
