OBO BETTERMANN US 7 K 150 A2 US 7 K 150 A2 6338747 OBO BETTERMANN Suspended support with welded head plate, 70x50x1500, Stained, Stainles.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 7 K 150 A2 6338747 OBO BETTERMANN Suspended support with welded head plate, 70x50x1500, Stained, Stainles..

US 7 K 150 A2

6338747

OBO BETTERMANN

1 Pcs.

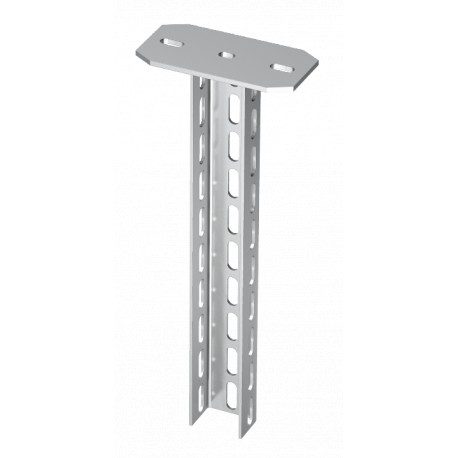

Suspended support with welded head plate, 70x50x1500, Stained, Stainless steel, grade 304, VA, 1.4301 US 7 K 150 A2 Bracket with Welded Head 70x50x1500 Stainless Steel Stainless Steel 1.4301, A2, 1.4301 Polished, with Post Treatment US 7 support A2. Suspended support (U profile) with welded head plate.

Cables > Ceiling profile for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Serving as a heavy-duty mounting element, this suspended support with welded head plate from Obo Bettermann facilitates the secure suspension of large cable management runs from ceilings. Industrial installations utilize these brackets to maintain organized and safe overhead cable distribution networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bracket length 200: 8,3 kN
  • Bracket length 400: 5 kN
  • Bracket length 600: 3,5 kN
  • CO2 Footprint (GWP) Cradle-to-Gate: 40,8676 kg CO2e / 1 Piece
  • Colour: stainless steel
  • Dimension: 70x50x1500
  • Height: 50 mm
  • Length: 1500 mm
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4301
  • Material thickness: 4 mm
  • Maximum tensile load: 11 kN
  • Surface: Bright, treated
  • Type of perforation: 3 sides perforated
  • Version for: U profile
  • Width: 70 mm

More info

▲
Bracket length 2008,3 kN
Bracket length 4005 kN
Bracket length 6003,5 kN
CO2 Footprint (GWP) Cradle-to-Gate40,8676 kg CO2e / 1 Piece
Colourstainless steel
Dimension70x50x1500
Height50 mm
Length1500 mm
Maintain electrical functionsno
MaterialStainless steel 1.4301
Material thickness4 mm
Maximum tensile load11 kN
SurfaceBright, treated
Type of perforation3 sides perforated
Version forU profile
Width70 mm
