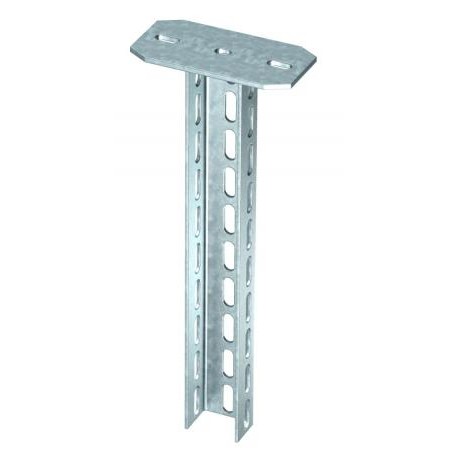

OBO BETTERMANN US 7 K 140 FT US 7 K 140 FT 6339220 OBO BETTERMANN Suspended support with welded head plate, 70x50x1400, Hot-dip galvanise.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 7 K 140 FT 6339220 OBO BETTERMANN Suspended support with welded head plate, 70x50x1400, Hot-dip galvanise..

US 7 K 140 FT

6339220

OBO BETTERMANN

1 Pcs.

Suspended support with welded head plate, 70x50x1400, Hot-dip galvanised, DIN EN ISO 1461, Steel, St US 7 support FT. Suspended support (U profile) of dimensions 70 x 50 mm with welded head plate.

Cables > Ceiling profile for cable support system
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann US 7 K 140 FT suspended support with welded head plate provides dependable vertical load-bearing capacity for complex industrial cable routing. Vertical structural supports are standard requirements in electrical infrastructure to suspend cable trays at optimal heights. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bracket length 200: 8,3 kN
  • Bracket length 400: 5 kN
  • Bracket length 600: 3,5 kN
  • CO2 Footprint (GWP) Cradle-to-Gate: 16,2466 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 70x50x1400
  • Dimension L: 1400 mm
  • Height: 50 mm
  • Length: 1400 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 4 mm
  • Maximum tensile load: 11 kN
  • Surface: Hot-dip galvanised
  • Version for: U profile
  • Width: 70 mm

More info

▲
Bracket length 2008,3 kN
Bracket length 4005 kN
Bracket length 6003,5 kN
CO2 Footprint (GWP) Cradle-to-Gate16,2466 kg CO2e / 1 Piece
Colourzinc
Dimension70x50x1400
Dimension L1400 mm
Height50 mm
Length1400 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness4 mm
Maximum tensile load11 kN
SurfaceHot-dip galvanised
Version forU profile
Width70 mm
