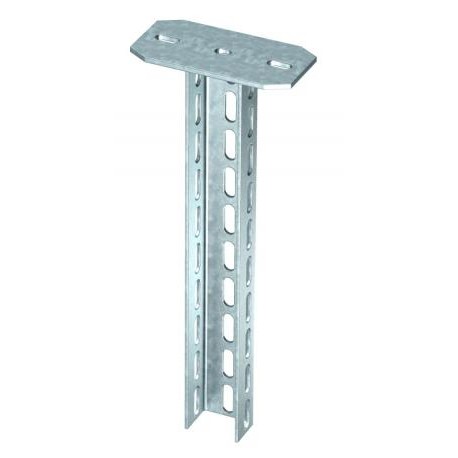

US 7 K 130 FT 6339212 OBO BETTERMANN Suspended support with welded head plate, 70x50x1300, Hot-dip galvanise..
US 7 K 130 FT
6339212
OBO BETTERMANN
1 Pcs.
Cables > Ceiling profile for cable support system
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann US 7 K 130 FT suspended support with welded head plate provides rigid structural support for heavy electrical installations and cable routing systems. Such profiles are commonly employed in commercial structures to distribute equipment weight securely across overhead anchoring points. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Bracket length 200: 8,3 kN
- Bracket length 400: 5 kN
- Bracket length 600: 3,5 kN
- CO2 Footprint (GWP) Cradle-to-Gate: 14,4176 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: 70x50x1300
- Dimension L: 1300 mm
- Height: 50 mm
- Length: 1300 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 4 mm
- Maximum tensile load: 11 kN
- Surface: Hot-dip galvanised
- Version for: U profile
- Width: 70 mm
More info
▲| Bracket length 200 | 8,3 kN |
|---|---|
| Bracket length 400 | 5 kN |
| Bracket length 600 | 3,5 kN |
| CO2 Footprint (GWP) Cradle-to-Gate | 14,4176 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 70x50x1300 |
| Dimension L | 1300 mm |
| Height | 50 mm |
| Length | 1300 mm |
|---|---|
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 4 mm |
| Maximum tensile load | 11 kN |
| Surface | Hot-dip galvanised |
| Version for | U profile |
| Width | 70 mm |
