View larger
Images are for illustrative purposes only. Please refer to data sheet for details

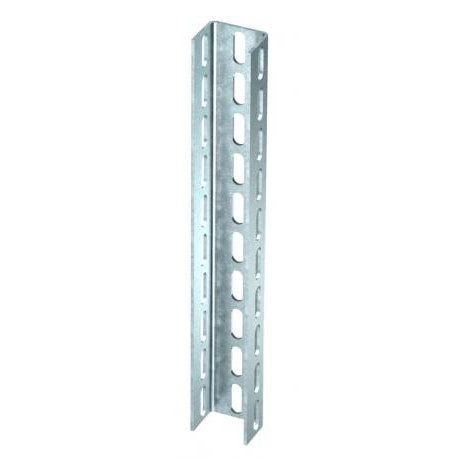

US 7 600 FT 6340318 OBO BETTERMANN U support 3-sided perforated, 70x50x6000, Hot-dip galvanised, DIN EN ISO ..
US 7 600 FT
6340318
OBO BETTERMANN
1 Pcs.
U support 3-sided perforated, 70x50x6000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
U-profile US 7 600 FT, perforated on 3 sides 70x50x6000 Steel, St, Hot-dipped galvanized, DIN EN ISO 1461
US Profile 7 FT. U-shaped profile. Dimensions 70 x 50 mm.
Automation > Mounting rail/-profile
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
For bracket widths of 400 mm or more, or if the bracket is mounted at the end of a suspended support, we recommend the use of the spacer, type DSK 61.
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 6000 mm |
| Width (EF000008) | 70 mm |
| Height (EF000040) | 50 mm |
| Material thickness (EF000386) | 4 mm |
| Profile shape (EF005179) | U-profile |
| Type of perforation (EF004147) | 3 sides perforated |
| With toothing (EF000571) | No |
| Area moment of inertia Iy (EF012513) | 13.79 cm4 |
| Area of inertia Iz (EF012514) | 36.84 cm4 |
| Moment of resistance Wy (EF012503) | 4.11 cm³ |
| Moment of resistance Wz (EF012504) | 10.53 cm³ |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 24.9 kg |
