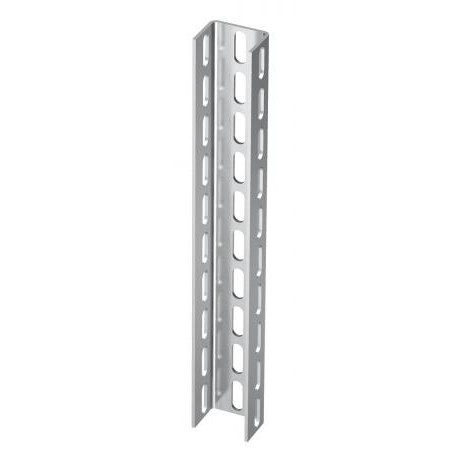

OBO BETTERMANN US 7 300 A2 US 7 300 VA4301 6341969 OBO BETTERMANN U support 3-sided perforated, 70x50x3000, Stainless steel, grade 304,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 7 300 VA4301 6341969 OBO BETTERMANN U support 3-sided perforated, 70x50x3000, Stainless steel, grade 304,..

US 7 300 A2

6341969

OBO BETTERMANN

1 Pcs.

U support 3-sided perforated, 70x50x3000, Stainless steel, grade 304, VA, 1.4301 US 7 support A2. U support in fixed lengths. Dimensions 70 x 50 mm.

Automation > Mounting rail/-profile
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann U support 3-sided perforated (part number US 7 300 A2) acts as a heavy-load structural pillar for extensive cable management networks in demanding industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 70,3689 kg CO2e / 1 Piece
  • Colour: stainless steel
  • Dimension: 70 x 50 x 4
  • Dimension: 70x50x3000
  • Height: 50 mm
  • Hole width: 14 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4301
  • Material thickness: 4 mm
  • Profile shape: U profile
  • Slot width: 40 mm
  • Static value A: 4,59 cm²
  • Static value ly: 13,79 cm⁴
  • Static value lz: 36,84 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate70,3689 kg CO2e / 1 Piece
Colourstainless steel
Dimension70 x 50 x 4
Dimension70x50x3000
Height50 mm
Hole width14 mm
Length3000 mm
Maintain electrical functionsno
MaterialStainless steel 1.4301
Material thickness4 mm
Profile shapeU profile
Slot width40 mm
Static value A4,59 cm²
Static value ly13,79 cm⁴
Static value lz36,84 cm⁴
Static value Wy4,11 cm³
Static value Wz10,53 cm³
SurfaceBright, treated
Type of perforation3 sides perforated
Version forSingle profile
Width70 mm
With toothingno
