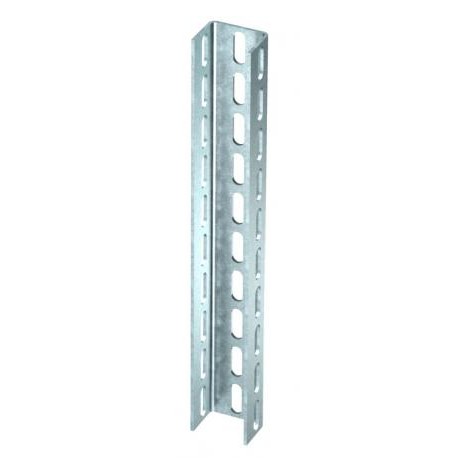

OBO BETTERMANN US 7 300 FT US 7 300 FT 6340377 OBO BETTERMANN U support 3-sided perforated, 70x50x3000, Hot-dip galvanised, DIN EN ISO .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

US 7 300 FT 6340377 OBO BETTERMANN U support 3-sided perforated, 70x50x3000, Hot-dip galvanised, DIN EN ISO ..

US 7 300 FT

6340377

OBO BETTERMANN

1 Pcs.

U support 3-sided perforated, 70x50x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St US 7 support FT. U support in fixed lengths. Dimensions 70 x 50 mm.

Automation > Mounting rail/-profile
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann US 7 300 FT is a U support 3-sided perforated designed for heavy-duty structural framework, cable management routing, and industrial support systems. Profile rails and supports like this one provide rigid load-bearing capacity and versatile mounting points across complex infrastructural setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 27,9628 kg CO2e / 1 Piece
  • Colour: zinc
  • Dimension: 70x50x3000
  • Dimension: 70 x 50 x 4
  • Dimension L: 3000 mm
  • Height: 50 mm
  • Hole width: 14 mm
  • Length: 3000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Material thickness: 4 mm
  • Profile shape: U profile
  • Slot width: 62 mm
  • Static value A: 4,59 cm²
  • Static value ly: 13,79 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate27,9628 kg CO2e / 1 Piece
Colourzinc
Dimension70x50x3000
Dimension70 x 50 x 4
Dimension L3000 mm
Height50 mm
Hole width14 mm
Length3000 mm
Maintain electrical functionsno
MaterialSteel
Material thickness4 mm
Profile shapeU profile
Slot width62 mm
Static value A4,59 cm²
Static value ly13,79 cm⁴
Static value lz36,84 cm⁴
Static value Wy4,11 cm³
Static value Wz10,53 cm³
SurfaceHot-dip galvanised
Type of perforation3 sides perforated
Version forSingle profile
Width70 mm
With toothingno
