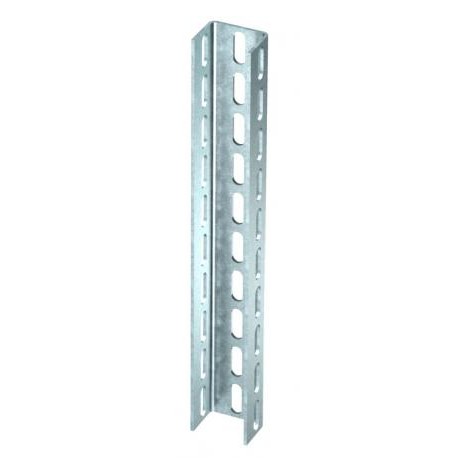

US 7 200 FT 6340296 OBO BETTERMANN U support 3-sided perforated, 70x50x2000, Hot-dip galvanised, DIN EN ISO ..
US 7 200 FT
6340296
OBO BETTERMANN
1 Pcs.
U support 3-sided perforated, 70x50x2000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
U-profile US 7 200 FT, perforated on 3 sides 70x50x2000 Steel, St, Hot-dipped galvanized, DIN EN ISO 1461
US 7 support FT. U support in fixed lengths. Dimensions 70 x 50 mm.
Automation > Mounting rail/-profile
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 18,8417 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 70 x 50 x 4 |
| Dimension | 70x50x2000 |
| Dimension L | 2000 mm |
| EPD article | yes |
| Height | 50 mm |
| Hole width | 14 mm |
| Length | 2000 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 4 mm |
| Profile shape | U profile |
|---|---|
| Slot width | 62 mm |
| Static value A | 4,59 cm² |
| Static value ly | 13,79 cm⁴ |
| Static value lz | 36,84 cm⁴ |
| Static value Wy | 4,11 cm³ |
| Static value Wz | 10,53 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 70 mm |
| With toothing | no |
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 2000 mm |
| Width (EF000008) | 70 mm |
| Height (EF000040) | 50 mm |
| Material thickness (EF000386) | 4 mm |
| Profile shape (EF005179) | U-profile |
| Type of perforation (EF004147) | 3 sides perforated |
| With toothing (EF000571) | No |
| Area moment of inertia Iy (EF012513) | 13.79 cm4 |
| Area of inertia Iz (EF012514) | 36.84 cm4 |
| Moment of resistance Wy (EF012503) | 4.11 cm³ |
| Moment of resistance Wz (EF012504) | 10.53 cm³ |
| Suitable for circuit integrity (EF007806) | Yes |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 8.04 kg |
