OBO BETTERMANN US 7 170 FT US 7 170 FT 6340253 OBO BETTERMANN U support 3-sided perforated, 70x50x1700, Hot-dip galvanised, DIN EN ISO .. View larger

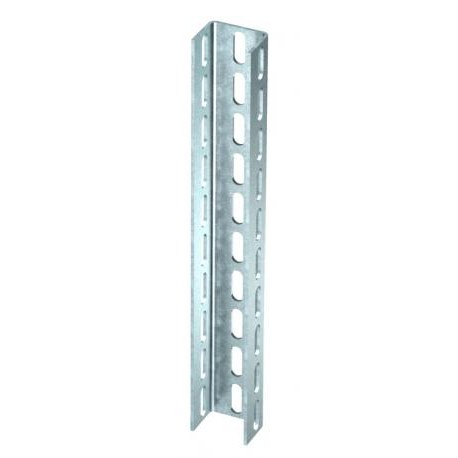

Images are for illustrative purposes only. Please refer to data sheet for details

US 7 170 FT 6340253 OBO BETTERMANN U support 3-sided perforated, 70x50x1700, Hot-dip galvanised, DIN EN ISO ..

US 7 170 FT

6340253

OBO BETTERMANN

1 Pcs.

U support 3-sided perforated, 70x50x1700, Hot-dip galvanised, DIN EN ISO 1461, Steel, St U-profile US 7 170 FT, perforated on 3 sides 70x50x1700 Steel, St, Hot-dip galvanized, DIN EN ISO 1461 US 7-Stem FT

Automation > Mounting rail/-profile
mounting accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

U supports function as sturdy structural columns or brackets used to mount heavy cable tray runs, ducting, and industrial distribution equipment securely to floors or walls. The Obo Bettermann US 7 170 FT profile features a robust hot-dip galvanized finish designed to resist corrosion in severe industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 1700 mm
  • Width (EF000008): 70 mm
  • Height (EF000040): 50 mm
  • Material thickness (EF000386): 4 mm
  • Profile shape (EF005179): U-profile
  • Type of perforation (EF004147): 3 sides perforated
  • With toothing (EF000571): No
  • Area moment of inertia Iy (EF012513): 13.79 cm4
  • Area of inertia Iz (EF012514): 36.84 cm4
  • Moment of resistance Wy (EF012503): 4.11 cm³
  • Moment of resistance Wz (EF012504): 10.53 cm³
  • Suitable for circuit integrity (EF007806): Yes
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized
  • Weight (EF000167): 6.86 kg

More info

▲
U-stem in fixed lengths. Dimensions 70 x 50 mm.
