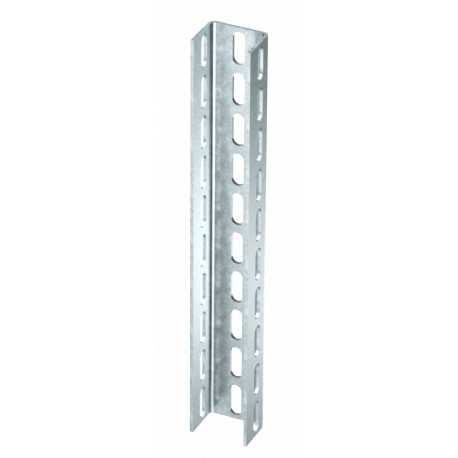

US 7 110 FT 6340199 OBO BETTERMANN U support 3-sided perforated, 70x50x1100, Hot-dip galvanised, DIN EN ISO ..
US 7 110 FT
6340199
OBO BETTERMANN
1 Pcs.
U support 3-sided perforated, 70x50x1100, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
US 7 support FT. U support in fixed lengths. Dimensions 70 x 50 mm.
Automation > Mounting rail/-profile
mounting accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
US 7 110 FT U support 3-sided perforated from Obo Bettermann functions as a heavy-load structural member designed to anchor cable trays and industrial utility lines securely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- CO2 Footprint (GWP) Cradle-to-Gate: 11,0486 kg CO2e / 1 Piece
- Colour: zinc
- Dimension: 70 x 50 x 4
- Dimension: 70x50x1100
- Dimension L: 1100 mm
- EPD article: yes
- Height: 50 mm
- Hole width: 14 mm
- Length: 1100 mm
- Maintain electrical functions: yes
- Material: Steel
- Material thickness: 4 mm
- Profile shape: U profile
- Slot width: 62 mm
- Static value A: 4,59 cm²
More info
▲| Breakable | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 11,0486 kg CO2e / 1 Piece |
| Colour | zinc |
| Dimension | 70 x 50 x 4 |
| Dimension | 70x50x1100 |
| Dimension L | 1100 mm |
| EPD article | yes |
| Height | 50 mm |
| Hole width | 14 mm |
| Length | 1100 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 4 mm |
| Profile shape | U profile |
|---|---|
| Slot width | 62 mm |
| Static value A | 4,59 cm² |
| Static value ly | 13,79 cm⁴ |
| Static value lz | 36,84 cm⁴ |
| Static value Wy | 4,11 cm³ |
| Static value Wz | 10,53 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | 3 sides perforated |
| Version for | Single profile |
| Width | 70 mm |
| With toothing | no |
